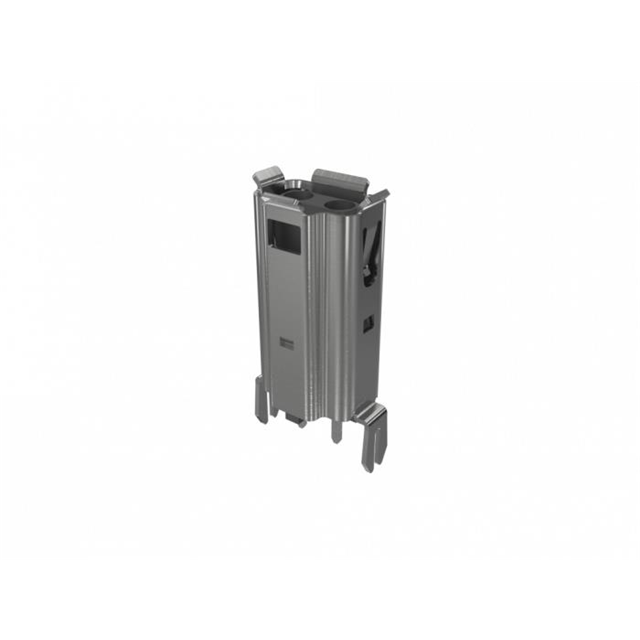

MSPE-J2L0-E00

Active

Amphenol ICC (Commercial Products)

MSPE SERIES, IP20 JACK, LATCH-LO

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

MSPE SERIES, IP20 JACK, LATCH-LO

Technical Specifications

Parameters and characteristics for this part

Specification	MSPE-J2L0-E00

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Number of Positions/Contacts	2P2C Single Pair Ethernet (SPE)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Vertical
Shielding	Unshielded
Termination	Solder

Part	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Number of Positions/Contacts	Shielding	Mounting Type	LED Color	Orientation	Housing Material	Termination	Contact Finish Thickness	Contact Finish Thickness	Number of Ports	Number of Rows	Contact Finish	Orientation
Amphenol ICC (Commercial Products) MSPE-J2L0-B00	Copper Alloy	85 °C	-40 °C	Jack	2P2C Single Pair Ethernet (SPE)	Unshielded	Panel Mount Through Hole	Does Not Contain LED	90 °	Thermoplastic	Solder	0.76 Ám	30 Áin	1	1	Gold
Amphenol ICC (Commercial Products) MSPE-J2L0-E00	Copper Alloy	85 °C	-40 °C	Jack	2P2C Single Pair Ethernet (SPE)	Unshielded	Panel Mount Through Hole	Does Not Contain LED		Thermoplastic	Solder	0.76 Ám	30 Áin	1	1	Gold	Vertical
Amphenol ICC (Commercial Products) MSPE-J2L0-B01	Copper Alloy	85 °C	-40 °C	Jack	2P2C Single Pair Ethernet (SPE)	Unshielded	Panel Mount Through Hole	Does Not Contain LED	90 °	Thermoplastic	Solder	0.76 Ám	30 Áin	1	1	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 2P2C Single Pair Ethernet (SPE) Vertical Unshielded
