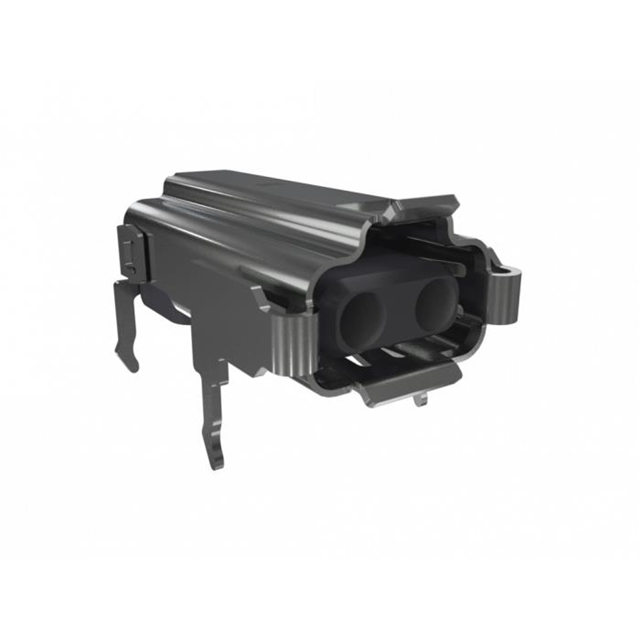

MSPE-J2L0-B00
ActiveAmphenol ICC (Commercial Products)
MSPE SERIES, IP20 JACK, LATCH-LO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MSPE-J2L0-B00
ActiveAmphenol ICC (Commercial Products)
MSPE SERIES, IP20 JACK, LATCH-LO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MSPE-J2L0-B00 |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Housing Material | Thermoplastic |
| LED Color | Does Not Contain LED |
| Mounting Type | Through Hole, Panel Mount |
| Number of Ports | 1 |
| Number of Positions/Contacts | 2P2C Single Pair Ethernet (SPE) |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | 90 ° |
| Shielding | Unshielded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.80 | |
| 10 | $ 3.45 | |||
| 25 | $ 3.26 | |||
| 40 | $ 3.19 | |||
| 80 | $ 3.04 | |||
| 240 | $ 2.66 | |||
| 480 | $ 2.58 | |||
| 960 | $ 2.20 | |||
| 2400 | $ 2.05 | |||
Description
General part information
MSPE-J Series
Jack Modular Connector 2P2C Single Pair Ethernet (SPE) 90° Angle (Right) Unshielded
