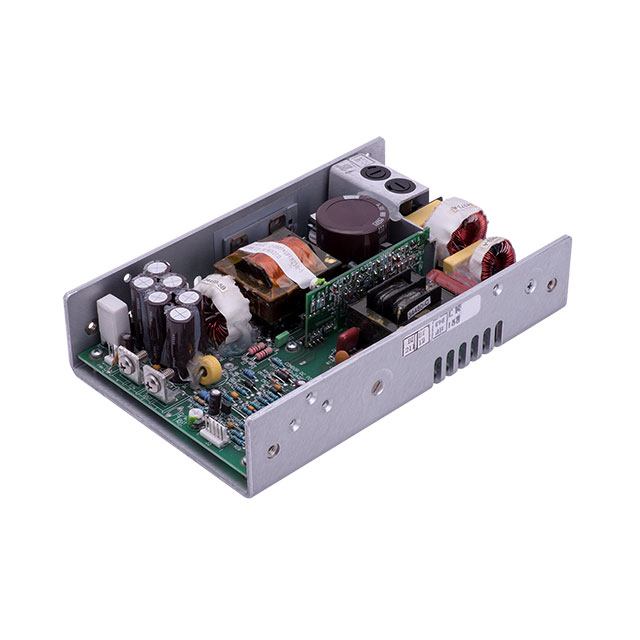

GPFC250-48G
ObsoleteSL POWER / Advanced Energy
AC/DC CONVERTER 48V 180W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GPFC250-48G
ObsoleteSL POWER / Advanced Energy
AC/DC CONVERTER 48V 180W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GPFC250-48G |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CE, TUV |
| Current - Output 1 | 3.8 A |
| Efficiency | 80 % |
| Features | Standby Output, Universal Input, PFC, Adjustable Output, Remote On/Off, Remote Sense |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 250 W |
| Power (Watts) | 180 W |
| Size / Dimension [x] | 8 " |
| Size / Dimension [x] | 203.2 mm |
| Size / Dimension [y] | 127 mm |
| Size / Dimension [y] | 5 " |
| Size / Dimension [z] | 44.5 mm |
| Size / Dimension [z] | 1.75 " |
| Type | Open Frame |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
GPFC250 Series
Open Frame AC DC Converters 1 Output 48V 85 ~ 264 VAC Input
