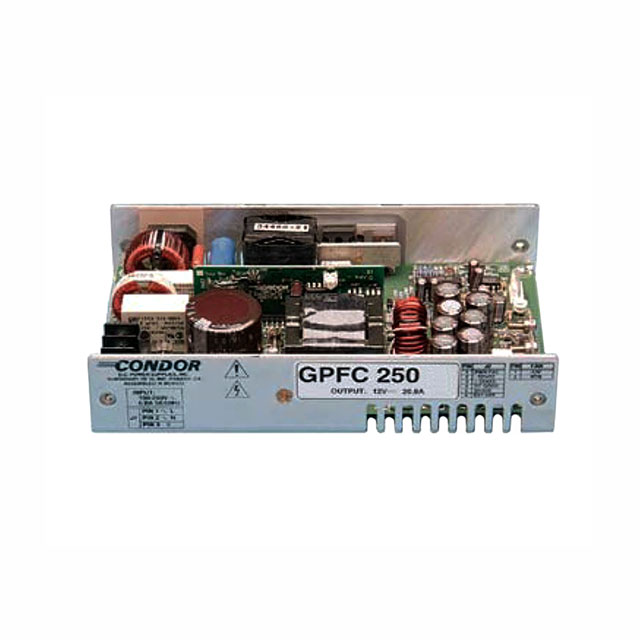

GPFC250-28G

Obsolete

SL POWER / Advanced Energy

AC/DC CONVERTER 28V 180W

Search across all available documentation for this part.

Obsolete

SL POWER / Advanced Energy

AC/DC CONVERTER 28V 180W

Technical Specifications

Parameters and characteristics for this part

Specification	GPFC250-28G

Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Efficiency	80 %
Features	Standby Output, Universal Input, PFC, Adjustable Output, Remote On/Off, Remote Sense
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	0 °C
Power (Watts)	250 W
Power (Watts)	180 W
Size / Dimension [x]	8 "
Size / Dimension [x]	203.2 mm
Size / Dimension [y]	127 mm
Size / Dimension [y]	5 "
Size / Dimension [z]	44.5 mm
Size / Dimension [z]	1.75 "
Type	Open Frame
Voltage - Isolation	4000 V
Voltage - Output 1	28 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Efficiency	Power (Watts)	Power (Watts)	Approval Agency	Mounting Type	Voltage - Isolation	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Type	Applications	Minimum Load Required	Features	Current - Output 1
SL POWER / Advanced Energy GPFC250-28G	0 °C	50 °C	1	80 %	250 W	180 W	CE cURus TUV	Chassis Mount	4000 V	28 V	8 "	44.5 mm	127 mm	203.2 mm	1.75 "	5 "	Open Frame	ITE (Commercial)		Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input
SL POWER / Advanced Energy GPFC250-48G	0 °C	50 °C	1	80 %	250 W	180 W	CE cURus TUV	Chassis Mount	4000 V	48 V	8 "	44.5 mm	127 mm	203.2 mm	1.75 "	5 "	Open Frame	ITE (Commercial)		Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input	3.8 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 28V 85 ~ 264 VAC Input
