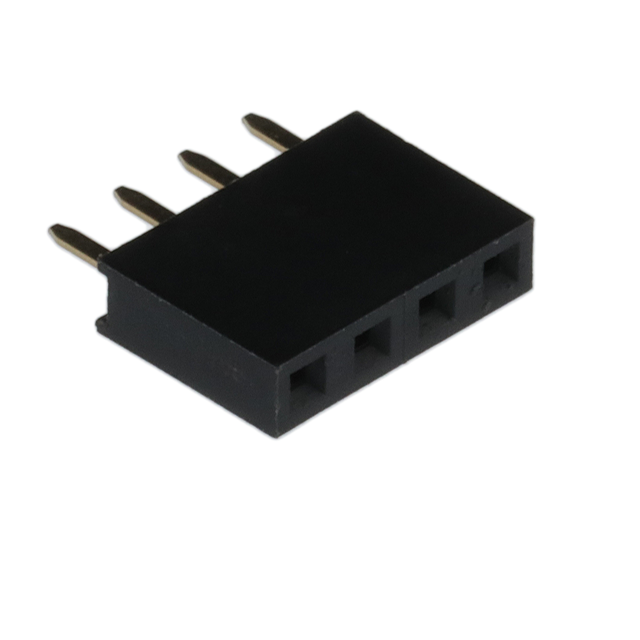

FR20204VBNN
ActiveMETZ CONNECT USA Inc.
RECEPTACLE, THR, SINGLE ROW, .10
Deep-Dive with AI
Search across all available documentation for this part.
FR20204VBNN
ActiveMETZ CONNECT USA Inc.
RECEPTACLE, THR, SINGLE ROW, .10
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FR20204VBNN |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.28 in |
| Insulation Height | 7.1 mm |
| Insulation Material | Polyamide (PA6), Nylon 6 |
| Mounting Type | Through Hole |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 0.43 | |
| 47 | $ 0.32 | |||
| 141 | $ 0.31 | |||
| 517 | $ 0.27 | |||
| 1034 | $ 0.24 | |||
Description
General part information
FR20204VB Series
4 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
