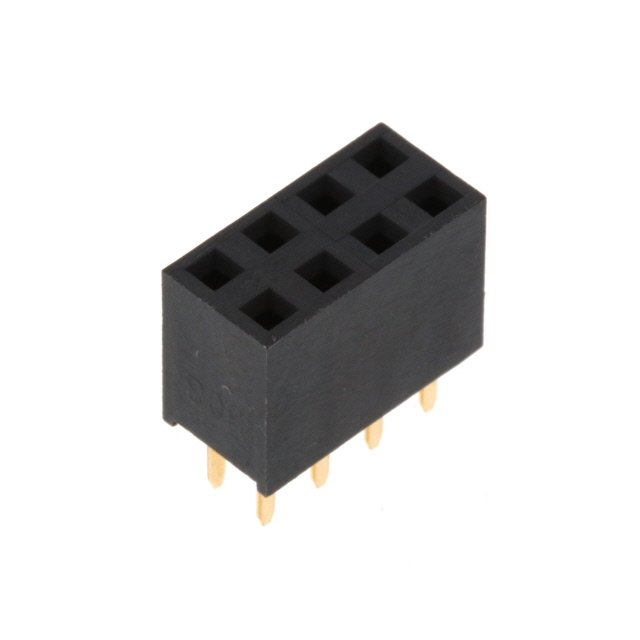

FR20204VBDN

Active

METZ CONNECT USA Inc.

RECEPTACLE, THR, DUAL ROW, .100"

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

RECEPTACLE, THR, DUAL ROW, .100"

Technical Specifications

Parameters and characteristics for this part

Specification	FR20204VBDN

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Ingress Protection	IP00
Insulation Color	Black
Insulation Height	0.28 in
Insulation Height	7.1 mm
Insulation Material	Polyamide (PA6), Nylon 6
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

Part	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Mounting Type	Number of Rows	Pitch - Mating	Pitch - Mating	Termination	Number of Positions Loaded	Contact Finish - Mating	Contact Material	Number of Positions	Contact Type	Insulation Material	Insulation Height	Insulation Height	Contact Shape	Insulation Color	Fastening Type	Contact Length - Post	Contact Length - Post	Ingress Protection	Row Spacing - Mating [x]	Row Spacing - Mating [x]
METZ CONNECT USA Inc. FR20204VBNN	Flash	-40 °C	105 ░C	Receptacle	Through Hole	1	0.1 in	2.54 mm	Solder	All	Gold	Copper Alloy	4	Female Socket	Polyamide (PA6) Nylon 6	0.28 in	7.1 mm	Square	Black	Push-Pull	0.118 in	3 mm
METZ CONNECT USA Inc. FR20204VBDN	Flash	-40 °C	105 ░C	Receptacle	Through Hole	2	0.1 in	2.54 mm	Solder	All	Gold	Copper Alloy	8	Female Socket	Polyamide (PA6) Nylon 6	0.28 in	7.1 mm	Square	Black	Push-Pull	0.118 in	3 mm	IP00	2.54 mm	0.1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
