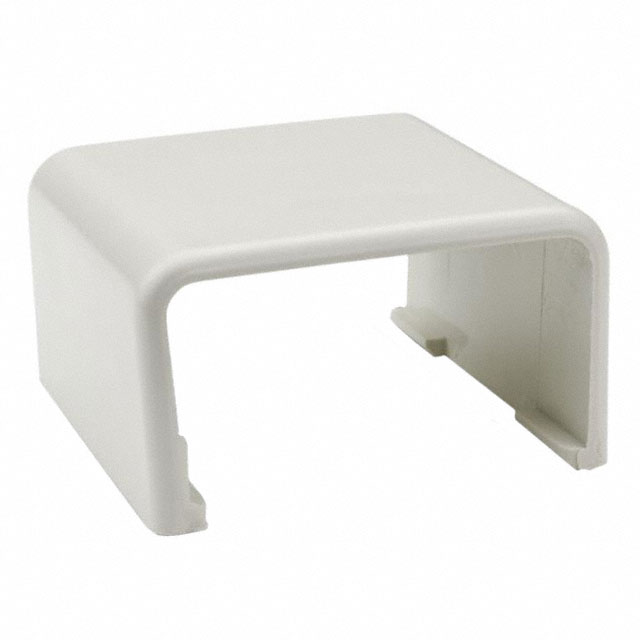

TSR3W-14

Active

HELLERMANNTYTON

RACEWAY DUCT FITTING, SPLICE COVER, PVC (POLYVINYLCHLORIDE), WHITE, 50.8 MM, 50.75 MM, 27.31 MM

Search across all available documentation for this part.

Active

HELLERMANNTYTON

RACEWAY DUCT FITTING, SPLICE COVER, PVC (POLYVINYLCHLORIDE), WHITE, 50.8 MM, 50.75 MM, 27.31 MM

Technical Specifications

Parameters and characteristics for this part

Part	Accessory Type	For Use With/Related Products	Color	Width [y]	Width [y]	Wire Duct Type	Height [z]	Height [z]	Material	Features	Length [x]	Length [x]	Mounting Type	Length	Length
HELLERMANNTYTON TSR3W-12	Fitting - Reducer	Reduces Duct Size from TSR2 to TSR1	White
HELLERMANNTYTON TSR3W-8A			Off White	1.74 in	44.2 mm	Single Channel Solid (Raceway)	1.014 in	25.76 mm	Poly-Vinyl Chloride (PVC)	Attached Latching Lid No Mounting Holes One-Piece Design Tamper Resistant	2.44 m	8 ft	Adhesive Screw
HELLERMANNTYTON TSR3W-36	Fitting - End Cap		White
HELLERMANNTYTON TSR3W-14	Fitting - Splice Cover		White
HELLERMANNTYTON TSR3W-6A			White	1.74 in	44.2 mm	Single Channel Solid (Raceway)	1.014 in	25.76 mm	Poly-Vinyl Chloride (PVC)	Attached Latching Lid No Mounting Holes One-Piece Design Tamper Resistant			Adhesive Screw	6 ft	1.83 m
