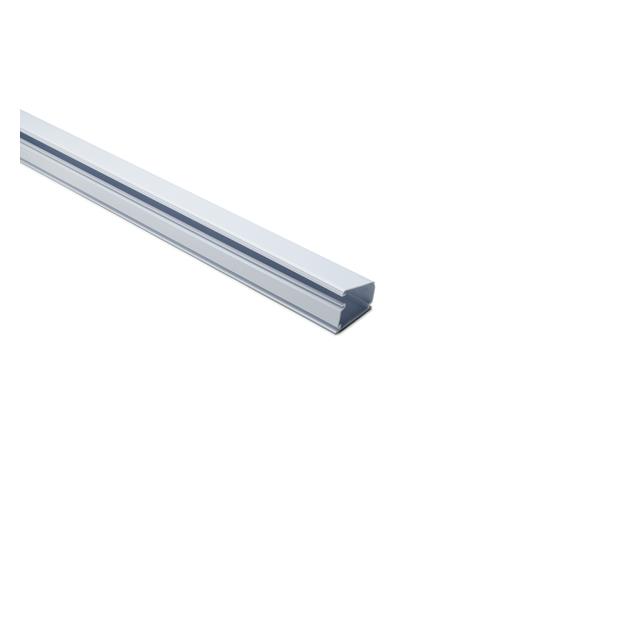

TSR3W-8A

Active

HELLERMANNTYTON

SURFACE RACEWAY, PVC, 25.4MM, WHITE

Search across all available documentation for this part.

Active

HELLERMANNTYTON

SURFACE RACEWAY, PVC, 25.4MM, WHITE

Technical Specifications

Parameters and characteristics for this part

Specification	TSR3W-8A

Color	Off, White
Features	No Mounting Holes, Tamper Resistant, Attached Latching Lid, One-Piece Design
Height [z]	1.014 in
Height [z]	25.76 mm
Length [x]	2.44 m
Length [x]	8 ft
Material	Poly-Vinyl Chloride (PVC)
Mounting Type	Adhesive, Screw
Width [y]	1.74 in
Width [y]	44.2 mm
Wire Duct Type	Single Channel, Solid (Raceway)

Part	Accessory Type	For Use With/Related Products	Color	Width [y]	Width [y]	Wire Duct Type	Height [z]	Height [z]	Material	Features	Length [x]	Length [x]	Mounting Type	Length	Length
HELLERMANNTYTON TSR3W-12	Fitting - Reducer	Reduces Duct Size from TSR2 to TSR1	White
HELLERMANNTYTON TSR3W-8A			Off White	1.74 in	44.2 mm	Single Channel Solid (Raceway)	1.014 in	25.76 mm	Poly-Vinyl Chloride (PVC)	Attached Latching Lid No Mounting Holes One-Piece Design Tamper Resistant	2.44 m	8 ft	Adhesive Screw
HELLERMANNTYTON TSR3W-36	Fitting - End Cap		White
HELLERMANNTYTON TSR3W-14	Fitting - Splice Cover		White
HELLERMANNTYTON TSR3W-6A			White	1.74 in	44.2 mm	Single Channel Solid (Raceway)	1.014 in	25.76 mm	Poly-Vinyl Chloride (PVC)	Attached Latching Lid No Mounting Holes One-Piece Design Tamper Resistant			Adhesive Screw	6 ft	1.83 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Wire Duct White, Off Solid (Raceway), Single Channel Adhesive, Screw 8.00' (2.44m)
