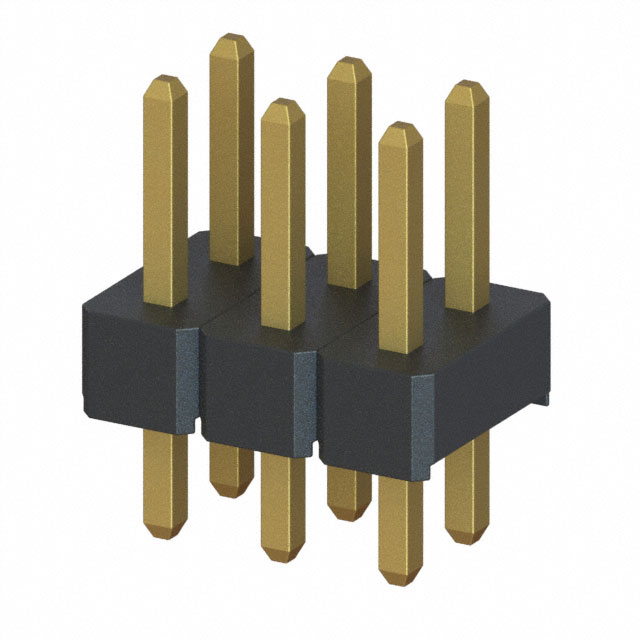

M22-2520305
ActiveHarwin Inc.
CONN HEADER VERT 6POS 2MM
Deep-Dive with AI
Search across all available documentation for this part.
M22-2520305
ActiveHarwin Inc.
CONN HEADER VERT 6POS 2MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M22-2520305 |
|---|---|
| Connector Type | Cuttable, Header |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.138 in |
| Contact Length - Mating | 3.5 mm |
| Contact Length - Post | 0.091 in |
| Contact Length - Post | 2.3 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 1 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 1.5 mm |
| Insulation Height | 0.059 " |
| Insulation Material | Nylon 6T, Polyamide (PA6T) |
| Mated Stacking Heights | 5.9 mm, 8.6 mm, 3.8 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Overall Contact Length | 7.3 mm |
| Overall Contact Length | 0.287 in |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Shrouding | Unshrouded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.49 | |
| 10 | $ 0.43 | |||
| 100 | $ 0.35 | |||
| 500 | $ 0.31 | |||
| 1000 | $ 0.25 | |||
| 5000 | $ 0.22 | |||
| 10000 | $ 0.21 | |||
Description
General part information
M22-252 Series
Connector Header Through Hole 6 position 0.079" (2.00mm)
