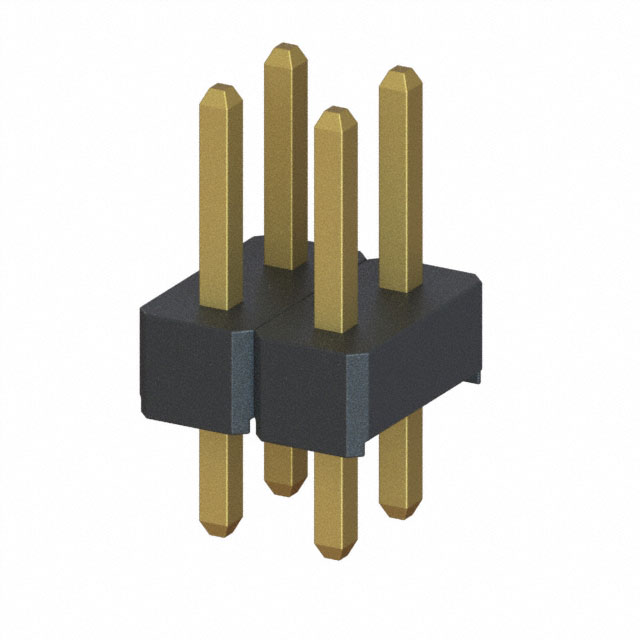

M22-2520205
ActiveHarwin Inc.
CONN, HDR, 4POS, 2ROW, 2MM ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
M22-2520205
ActiveHarwin Inc.
CONN, HDR, 4POS, 2ROW, 2MM ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M22-2520205 |
|---|---|
| Connector Type | Cuttable, Header |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.138 in |
| Contact Length - Mating | 3.5 mm |
| Contact Length - Post | 0.091 in |
| Contact Length - Post | 2.3 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 1 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 1.5 mm |
| Insulation Height | 0.059 " |
| Insulation Material | Nylon 6T, Polyamide (PA6T) |
| Mated Stacking Heights | 5.9 mm, 8.6 mm, 3.8 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Overall Contact Length | 7.3 mm |
| Overall Contact Length | 0.287 in |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Shrouding | Unshrouded |
| Termination | Solder |
M22-252 Series
| Part | Contact Material | Current Rating (Amps) | Contact Shape | Termination | Contact Finish - Mating | Number of Rows | Contact Type | Number of Positions Loaded | Insulation Color | Row Spacing - Mating | Row Spacing - Mating | Mounting Type | Insulation Material | Connector Type | Fastening Type | Shrouding | Number of Positions | Contact Length - Post | Contact Length - Post | Overall Contact Length | Overall Contact Length | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Mating | Contact Length - Mating | Mated Stacking Heights | Material Flammability Rating | Pitch - Mating [x] | Pitch - Mating [x] | Insulation Height | Insulation Height | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Phosphor Bronze | 1 A | Square | Solder | Gold | 2 | Male Pin | All | Black | 0.079 in | 2 mm | Through Hole | Nylon 6T Polyamide (PA6T) | Cuttable Header | Push-Pull | Unshrouded | 12 | 0.091 in | 2.3 mm | 7.3 mm | 0.287 in | -40 °C | 105 ░C | 0.138 in | 3.5 mm | 3.8 mm 5.9 mm 8.6 mm | UL94 V-0 | 0.079 in | 2 mm | 1.5 mm | 0.059 " | |
Harwin Inc. | Phosphor Bronze | 1 A | Square | Solder | 2 | Male Pin | All | Black | 0.079 in | 2 mm | Through Hole | Nylon 6T Polyamide (PA6T) | Cuttable Header | Push-Pull | Unshrouded | 20 | 0.091 in | 2.3 mm | 7.3 mm | 0.287 in | -40 °C | 105 ░C | 0.138 in | 3.5 mm | 3.8 mm 5.9 mm 8.6 mm | UL94 V-0 | 0.079 in | 2 mm | 1.5 mm | 0.059 " | Tin | |
Harwin Inc. | Phosphor Bronze | 1 A | Square | Solder | 2 | Male Pin | All | Black | 0.079 in | 2 mm | Through Hole | Nylon 6T Polyamide (PA6T) | Cuttable Header | Push-Pull | Unshrouded | 30 | 0.091 in | 2.3 mm | 7.3 mm | 0.287 in | -40 °C | 105 ░C | 0.138 in | 3.5 mm | 3.8 mm 5.9 mm 8.6 mm | UL94 V-0 | 0.079 in | 2 mm | 1.5 mm | 0.059 " | Tin | |
Harwin Inc. | Phosphor Bronze | 1 A | Square | Solder | Gold | 2 | Male Pin | All | Black | 0.079 in | 2 mm | Through Hole | Nylon 6T Polyamide (PA6T) | Cuttable Header | Push-Pull | Unshrouded | 20 | 0.091 in | 2.3 mm | 7.3 mm | 0.287 in | -40 °C | 105 ░C | 0.138 in | 3.5 mm | 3.8 mm 5.9 mm 8.6 mm | UL94 V-0 | 0.079 in | 2 mm | 1.5 mm | 0.059 " | |
Harwin Inc. | Phosphor Bronze | 1 A | Square | Solder | Gold | 2 | Male Pin | All | Black | 0.079 in | 2 mm | Through Hole | Nylon 6T Polyamide (PA6T) | Cuttable Header | Push-Pull | Unshrouded | 24 | 0.091 in | 2.3 mm | 7.3 mm | 0.287 in | -40 °C | 105 ░C | 0.138 in | 3.5 mm | 3.8 mm 5.9 mm 8.6 mm | UL94 V-0 | 0.079 in | 2 mm | 1.5 mm | 0.059 " | |
Harwin Inc. | Phosphor Bronze | 1 A | Square | Solder | Gold | 2 | Male Pin | All | Black | 0.079 in | 2 mm | Through Hole | Nylon 6T Polyamide (PA6T) | Cuttable Header | Push-Pull | Unshrouded | 4 | 0.091 in | 2.3 mm | 7.3 mm | 0.287 in | -40 °C | 105 ░C | 0.138 in | 3.5 mm | 3.8 mm 5.9 mm 8.6 mm | UL94 V-0 | 0.079 in | 2 mm | 1.5 mm | 0.059 " | |
Harwin Inc. | Phosphor Bronze | 1 A | Square | Solder | Gold | 2 | Male Pin | All | Black | 0.079 in | 2 mm | Through Hole | Nylon 6T Polyamide (PA6T) | Cuttable Header | Push-Pull | Unshrouded | 10 | 0.091 in | 2.3 mm | 7.3 mm | 0.287 in | -40 °C | 105 ░C | 0.138 in | 3.5 mm | 3.8 mm 5.9 mm 8.6 mm | UL94 V-0 | 0.079 in | 2 mm | 1.5 mm | 0.059 " | |
Harwin Inc. | Phosphor Bronze | 1 A | Square | Solder | Gold | 2 | Male Pin | All | Black | 0.079 in | 2 mm | Through Hole | Nylon 6T Polyamide (PA6T) | Cuttable Header | Push-Pull | Unshrouded | 6 | 0.091 in | 2.3 mm | 7.3 mm | 0.287 in | -40 °C | 105 ░C | 0.138 in | 3.5 mm | 3.8 mm 5.9 mm 8.6 mm | UL94 V-0 | 0.079 in | 2 mm | 1.5 mm | 0.059 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M22-252 Series
Connector Header Through Hole 4 position 0.079" (2.00mm)
