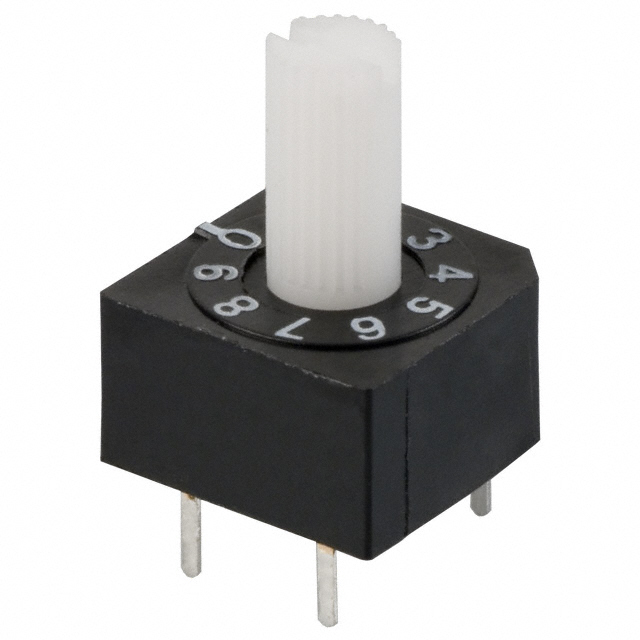

A6A-10RS

Active

Omron Electronics Inc-EMC Div

SWITCH ROTARY DIP BCD 0.1A 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet

A6A-10RS

Active

Omron Electronics Inc-EMC Div

SWITCH ROTARY DIP BCD 0.1A 28V

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A6A-10RS

Actuator Level	Raised
Actuator Type	Rotary with Shaft
Circuit	BCD
Current Rating (Amps)	100 mA
Electrical Life	2000 Steps
Features	IP64 - Dust Tight, Water Resistant
Height Above Board	0.531 in
Height Above Board	13.49 mm
Length	10 mm
Length	0.394 in
Mechanical Life	10000 Steps
Mounting Type	Through Hole
Number of Positions	10
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	PC Pin
Voltage Rating	28 VDC
Washable	True

A6A Series

Part	Voltage Rating	Mounting Type	Current Rating (Amps)	Circuit	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Height Above Board [z]	Height Above Board [z]	Actuator Type	Electrical Life	Number of Positions	Length	Length	Actuator Level	Pitch [x]	Pitch	Pitch [x]	Termination Style	Mechanical Life	Features	Height Above Board	Height Above Board	Number of Positions
Omron Electronics Inc-EMC Div A6A-10CF	28 VDC	Through Hole	100 mA	BCD Complement	-10 °C	158 °F	6.2 mm	0.244 "	Rotary for Tool	2000 Steps	10	10 mm	0.394 in	Flush Recessed	0.1 in	Full	2.54 mm	PC Pin	10000 Steps	IP64 - Dust Tight Water Resistant
Omron Electronics Inc-EMC Div A6A-10CS	28 VDC	Through Hole	100 mA	BCD Complement	-10 °C	158 °F			Rotary with Shaft	2000 Steps	10	10 mm	0.394 in	Raised	0.1 in	Full	2.54 mm	PC Pin	10000 Steps	IP64 - Dust Tight Water Resistant	0.531 in	13.49 mm
Omron Electronics Inc-EMC Div A6A-16CW	28 VDC	Through Hole	100 mA	Hexadecimal Complement	-10 °C	158 °F			Rotary with Knob	2000 Steps		10 mm	0.394 in	Raised	0.1 in	Full	2.54 mm	PC Pin	10000 Steps	IP64 - Dust Tight Water Resistant	0.531 in	13.49 mm	16
Omron Electronics Inc-EMC Div A6A-16C	28 VDC	Through Hole	100 mA	Hexadecimal Complement	-10 °C	158 °F	7.5 mm	0.295 in	Rotary for Tool	2000 Steps		10 mm	0.394 in	Raised	0.1 in	Full	2.54 mm	PC Pin	10000 Steps	IP64 - Dust Tight Water Resistant			16
Omron Electronics Inc-EMC Div A6A-16RF	28 VDC	Through Hole	100 mA	Hexadecimal	-10 °C	158 °F	6.2 mm	0.244 "	Rotary for Tool	2000 Steps		10 mm	0.394 in	Flush Recessed	0.1 in	Full	2.54 mm	PC Pin	10000 Steps	IP64 - Dust Tight Water Resistant			16
Omron Electronics Inc-EMC Div A6A-10C	28 VDC	Through Hole	100 mA	BCD Complement	-10 °C	158 °F	7.5 mm	0.295 in	Rotary for Tool	2000 Steps	10	10 mm	0.394 in	Raised	0.1 in	Full	2.54 mm	PC Pin	10000 Steps	IP64 - Dust Tight Water Resistant
Omron Electronics Inc-EMC Div A6A-16RS	28 VDC	Through Hole	100 mA	Hexadecimal	-10 °C	158 °F			Rotary with Shaft	2000 Steps		10 mm	0.394 in	Raised	0.1 in	Full	2.54 mm	PC Pin	10000 Steps	IP64 - Dust Tight Water Resistant	0.531 in	13.49 mm	16
Omron Electronics Inc-EMC Div A6A-10RS	28 VDC	Through Hole	100 mA	BCD	-10 °C	158 °F			Rotary with Shaft	2000 Steps	10	10 mm	0.394 in	Raised	0.1 in	Full	2.54 mm	PC Pin	10000 Steps	IP64 - Dust Tight Water Resistant	0.531 in	13.49 mm
Omron Electronics Inc-EMC Div A6A-10R	28 VDC	Through Hole	100 mA	BCD	-10 °C	158 °F	7.5 mm	0.295 in	Rotary for Tool	2000 Steps	10	10 mm	0.394 in	Raised	0.1 in	Full	2.54 mm	PC Pin	10000 Steps	IP64 - Dust Tight Water Resistant

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.42
		10	$ 6.90
		25	$ 6.14
		100	$ 5.91
		300	$ 5.30
		500	$ 5.22
		1000	$ 4.94
