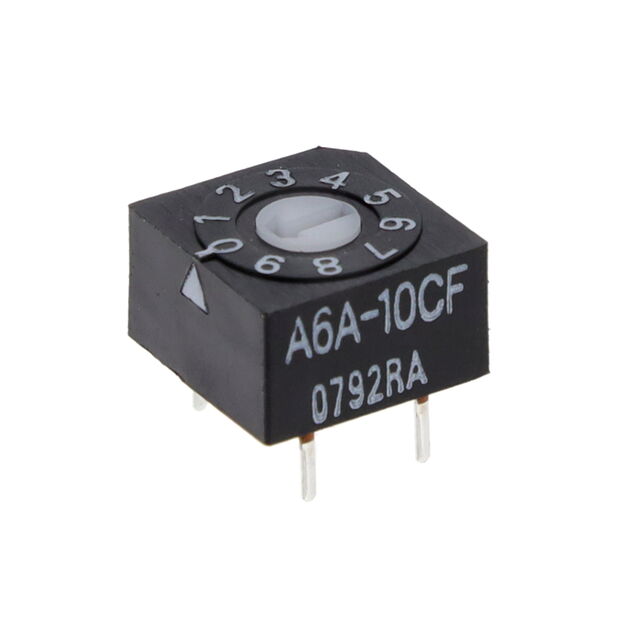

A6A-10CF

Active

Omron Electronics Inc-EMC Div

SW ROTARY DIP BCD COMP 0.1A 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet How to Read Date Codes

A6A-10CF

Active

Omron Electronics Inc-EMC Div

SW ROTARY DIP BCD COMP 0.1A 28V

Deep-Dive with AI

DocumentsDatasheet How to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A6A-10CF

Actuator Level	Flush, Recessed
Actuator Type	Rotary for Tool
Circuit	BCD Complement
Current Rating (Amps)	100 mA
Electrical Life	2000 Steps
Features	IP64 - Dust Tight, Water Resistant
Height Above Board [z]	6.2 mm
Height Above Board [z]	0.244 "
Length	10 mm
Length	0.394 in
Mechanical Life	10000 Steps
Mounting Type	Through Hole
Number of Positions	10
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	PC Pin
Voltage Rating	28 VDC
Washable	True

A6A Series

Part	Voltage Rating	Mounting Type	Current Rating (Amps)	Circuit	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Height Above Board [z]	Height Above Board [z]	Actuator Type	Electrical Life	Number of Positions	Length	Length	Actuator Level	Pitch [x]	Pitch	Pitch [x]	Termination Style	Mechanical Life	Features	Height Above Board	Height Above Board	Number of Positions
Omron Electronics Inc-EMC Div A6A-10CF	28 VDC	Through Hole	100 mA	BCD Complement	-10 °C	158 °F	6.2 mm	0.244 "	Rotary for Tool	2000 Steps	10	10 mm	0.394 in	Flush Recessed	0.1 in	Full	2.54 mm	PC Pin	10000 Steps	IP64 - Dust Tight Water Resistant
Omron Electronics Inc-EMC Div A6A-10CS	28 VDC	Through Hole	100 mA	BCD Complement	-10 °C	158 °F			Rotary with Shaft	2000 Steps	10	10 mm	0.394 in	Raised	0.1 in	Full	2.54 mm	PC Pin	10000 Steps	IP64 - Dust Tight Water Resistant	0.531 in	13.49 mm
Omron Electronics Inc-EMC Div A6A-16CW	28 VDC	Through Hole	100 mA	Hexadecimal Complement	-10 °C	158 °F			Rotary with Knob	2000 Steps		10 mm	0.394 in	Raised	0.1 in	Full	2.54 mm	PC Pin	10000 Steps	IP64 - Dust Tight Water Resistant	0.531 in	13.49 mm	16
Omron Electronics Inc-EMC Div A6A-16C	28 VDC	Through Hole	100 mA	Hexadecimal Complement	-10 °C	158 °F	7.5 mm	0.295 in	Rotary for Tool	2000 Steps		10 mm	0.394 in	Raised	0.1 in	Full	2.54 mm	PC Pin	10000 Steps	IP64 - Dust Tight Water Resistant			16
Omron Electronics Inc-EMC Div A6A-16RF	28 VDC	Through Hole	100 mA	Hexadecimal	-10 °C	158 °F	6.2 mm	0.244 "	Rotary for Tool	2000 Steps		10 mm	0.394 in	Flush Recessed	0.1 in	Full	2.54 mm	PC Pin	10000 Steps	IP64 - Dust Tight Water Resistant			16
Omron Electronics Inc-EMC Div A6A-10C	28 VDC	Through Hole	100 mA	BCD Complement	-10 °C	158 °F	7.5 mm	0.295 in	Rotary for Tool	2000 Steps	10	10 mm	0.394 in	Raised	0.1 in	Full	2.54 mm	PC Pin	10000 Steps	IP64 - Dust Tight Water Resistant
Omron Electronics Inc-EMC Div A6A-16RS	28 VDC	Through Hole	100 mA	Hexadecimal	-10 °C	158 °F			Rotary with Shaft	2000 Steps		10 mm	0.394 in	Raised	0.1 in	Full	2.54 mm	PC Pin	10000 Steps	IP64 - Dust Tight Water Resistant	0.531 in	13.49 mm	16
Omron Electronics Inc-EMC Div A6A-10RS	28 VDC	Through Hole	100 mA	BCD	-10 °C	158 °F			Rotary with Shaft	2000 Steps	10	10 mm	0.394 in	Raised	0.1 in	Full	2.54 mm	PC Pin	10000 Steps	IP64 - Dust Tight Water Resistant	0.531 in	13.49 mm
Omron Electronics Inc-EMC Div A6A-10R	28 VDC	Through Hole	100 mA	BCD	-10 °C	158 °F	7.5 mm	0.295 in	Rotary for Tool	2000 Steps	10	10 mm	0.394 in	Raised	0.1 in	Full	2.54 mm	PC Pin	10000 Steps	IP64 - Dust Tight Water Resistant

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 7.77
		10	$ 7.41
		25	$ 6.74
		100	$ 5.82
		300	$ 5.30
		500	$ 4.91
		1000	$ 4.55

Description

General part information

A6A Series

Dip Switch BCD Complement 10 Position Through Hole Rotary for Tool Actuator 100mA 28VDC

Documents

Technical documentation and resources
