SW3823D

Active

NKK Switches

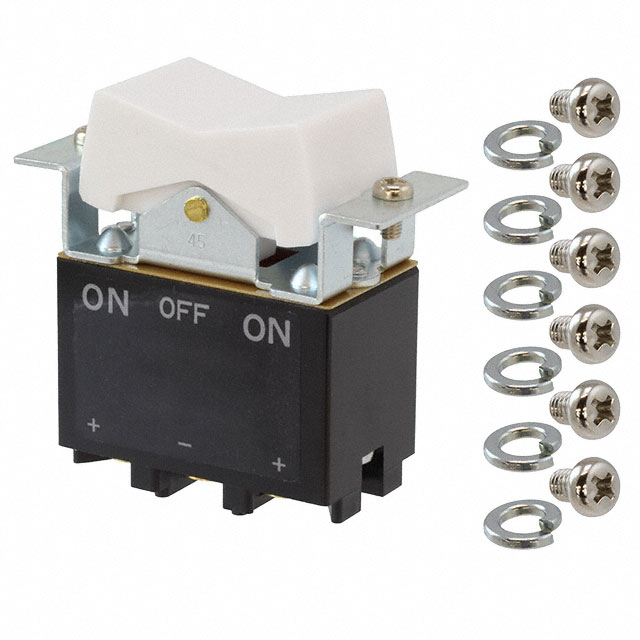

ROCKER SWITCH, ON-OFF-ON, DPDT, NON ILLUMINATED, PANEL, FLANGE, WHITE, SW SERIES

Search across all available documentation for this part.

Active

NKK Switches

ROCKER SWITCH, ON-OFF-ON, DPDT, NON ILLUMINATED, PANEL, FLANGE, WHITE, SW SERIES

Technical Specifications

Parameters and characteristics for this part

Specification	SW3823D

Actuator Marking	No Marking
Actuator Type	Concave (Standard V)
Approval Agency	CSA, UL
Circuit	DPDT
Color - Actuator/Cap	White
Electrical Life	25000 Steps
Mounting Type	Panel Mount, Flange
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Switch Function	On-Off-On
Termination Style	Screw Terminal
Voltage Rating - DC	30 V

Part	Switch Function	Mounting Type	Voltage Rating - DC	Color - Actuator/Cap	Termination Style	Actuator Type	Actuator Marking	Circuit	Electrical Life	Approval Agency	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Current Rating (Amps)	Voltage Rating - AC
NKK Switches SW3823D/UC	On-Off-On	Flange Panel Mount	30 V	White	Screw Terminal	Concave (Standard V)	No Marking	DPDT	25000 Steps	CSA UL	-10 °C	158 °F
NKK Switches SW3823D	On-Off-On	Flange Panel Mount	30 V	White	Screw Terminal	Concave (Standard V)	No Marking	DPDT	25000 Steps	CSA UL	-10 °C	158 °F
NKK Switches SW3823/CUL	On-Off-On	Flange Panel Mount	30 V	White	Screw Terminal	Concave (Standard V)	No Marking	DPDT	25000 Steps	CSA UL	-10 °C	158 °F	30 A	125 V
