SW3823D/UC

Obsolete

NKK Switches

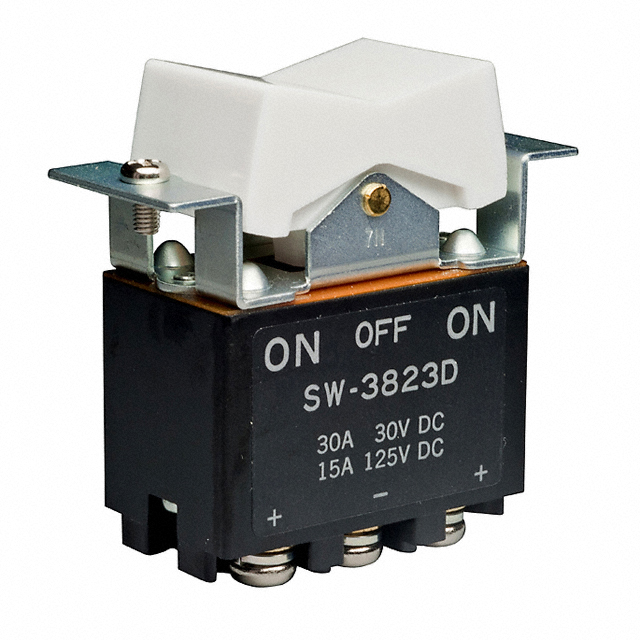

SWITCH ROCKER DPDT 30A 30V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH ROCKER DPDT 30A 30V

Technical Specifications

Parameters and characteristics for this part

Specification	SW3823D/UC

Actuator Marking	No Marking
Actuator Type	Concave (Standard V)
Approval Agency	CSA, UL
Circuit	DPDT
Color - Actuator/Cap	White
Electrical Life	25000 Steps
Mounting Type	Panel Mount, Flange
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Switch Function	On-Off-On
Termination Style	Screw Terminal
Voltage Rating - DC	30 V

Part	Switch Function	Mounting Type	Voltage Rating - DC	Color - Actuator/Cap	Termination Style	Actuator Type	Actuator Marking	Circuit	Electrical Life	Approval Agency	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Current Rating (Amps)	Voltage Rating - AC
NKK Switches SW3823D/UC	On-Off-On	Flange Panel Mount	30 V	White	Screw Terminal	Concave (Standard V)	No Marking	DPDT	25000 Steps	CSA UL	-10 °C	158 °F
NKK Switches SW3823D	On-Off-On	Flange Panel Mount	30 V	White	Screw Terminal	Concave (Standard V)	No Marking	DPDT	25000 Steps	CSA UL	-10 °C	158 °F
NKK Switches SW3823/CUL	On-Off-On	Flange Panel Mount	30 V	White	Screw Terminal	Concave (Standard V)	No Marking	DPDT	25000 Steps	CSA UL	-10 °C	158 °F	30 A	125 V
