FH50-40S-0.5SH

Active

Hirose Electric USA, Inc.

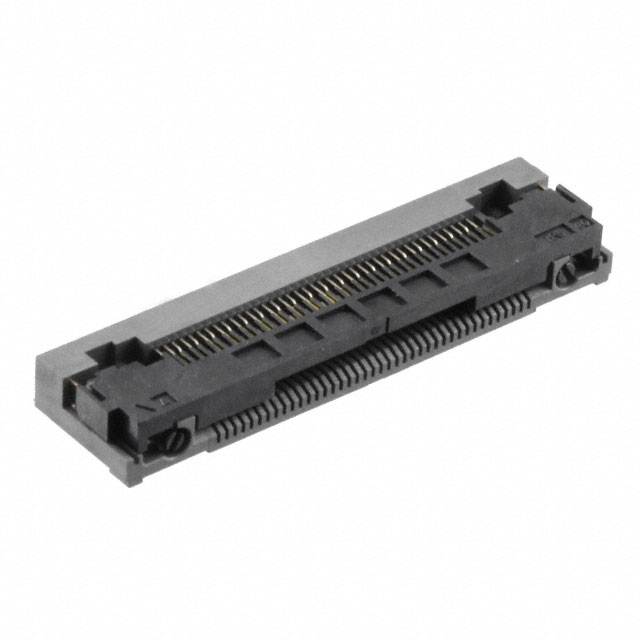

CONN FFC BOTTOM 40POS 0.5MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet FH50-40S-0.5SH Spec

FH50-40S-0.5SH

Active

Hirose Electric USA, Inc.

CONN FFC BOTTOM 40POS 0.5MM R/A

Deep-Dive with AI

DocumentsDatasheet FH50-40S-0.5SH Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FH50-40S-0.5SH

Actuator Color	Black
Actuator Material	Liquid Crystal Polymer (LCP), Halogen Free
Cable End Type	Notched
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Finish Thickness	1.25 Áin
Contact Finish Thickness	0.03 Ám
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board	3.7 mm
Height Above Board	0.146 in
Housing Color	Gray
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Locking Feature	Flip Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	40
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

FH50 Series

Part	Mating Cycles	Contact Finish	Pitch [x]	Pitch [x]	Connector/Contact Type	Contact Material	Locking Feature	Housing Color	Cable End Type	Height Above Board	Height Above Board	Actuator Material	Termination	Material Flammability Rating	FFC, FCB Thickness	Flat Flex Type	Current Rating (Amps)	Mounting Type	Actuator Color	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Housing Material	Features
Hirose Electric USA, Inc. FH50-28S-0.5SH	20	Gold	0.5 mm	0.02 in	Contacts Bottom	Phosphor Bronze	Flip Lock	Gray	Notched	3.7 mm	0.146 in	Liquid Crystal Polymer (LCP) Halogen Free	Solder	UL94 V-0	0.3 mm	FFC FPC	0.5 A	Surface Mount Right Angle	Black	1.25 Áin	0.03 Ám	28	85 °C	-55 °C	50 V	Liquid Crystal Polymer (LCP) Halogen Free
Hirose Electric USA, Inc. FH50-40S-0.5SH	20	Gold	0.5 mm	0.02 in	Contacts Bottom	Phosphor Bronze	Flip Lock	Gray	Notched	3.7 mm	0.146 in	Liquid Crystal Polymer (LCP) Halogen Free	Solder	UL94 V-0	0.3 mm	FFC FPC	0.5 A	Surface Mount Right Angle	Black	1.25 Áin	0.03 Ám	40	85 °C	-55 °C	50 V	Liquid Crystal Polymer (LCP) Halogen Free
Hirose Electric USA, Inc. FH50-50S-0.5SH	20	Gold	0.5 mm	0.02 in	Receptacle	Phosphor Bronze	Flip Lock	Gray	Notched	3.7 mm	0.146 in	Liquid Crystal Polymer (LCP)	Solder	UL94 V-0	0.3 mm	FPC	0.5 A	Surface Mount Right Angle	Black	1.25 Áin	0.03 Ám	50	85 °C	-55 °C	50 V	Liquid Crystal Polymer (LCP)	Solder Retention Zero Insertion Force (ZIF)
Hirose Electric USA, Inc. FH50-80S-0.5SH	20	Gold	0.5 mm	0.02 in	Contacts Bottom	Phosphor Bronze	Flip Lock	Gray	Notched	3.7 mm	0.146 in	Liquid Crystal Polymer (LCP)	Solder	UL94 V-0	0.3 mm	FFC FPC	0.5 A	Surface Mount Right Angle	Black	1.25 Áin	0.03 Ám	80	85 °C	-55 °C	50 V	Liquid Crystal Polymer (LCP)	Solder Retention Zero Insertion Force (ZIF)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.41
		10	$ 3.10
		25	$ 2.93
		50	$ 2.86
		100	$ 2.73
		250	$ 2.39
		500	$ 2.32
	Digi-Reel®	1	$ 3.41
		10	$ 3.10
		25	$ 2.93
		50	$ 2.86
		100	$ 2.73
		250	$ 2.39
		500	$ 2.32
	Tape & Reel (TR)	1000	$ 1.98
		2000	$ 1.91
		3000	$ 1.84
		5000	$ 1.77

Description

General part information

FH50 Series

40 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
