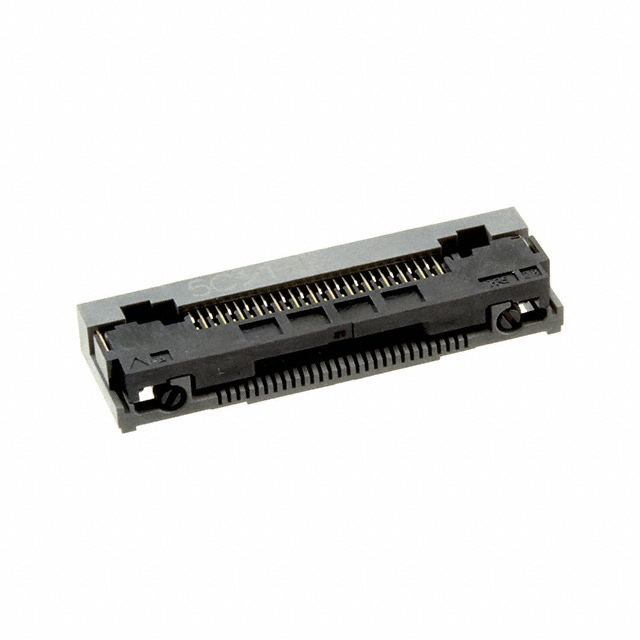

FH50-28S-0.5SH
ActiveHirose Electric USA, Inc.
CARD EDGE CONNECTOR, 28 CONTACT(S), 1 ROW(S), RIGHT ANGLE, 0.019 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING
Deep-Dive with AI
Search across all available documentation for this part.
FH50-28S-0.5SH
ActiveHirose Electric USA, Inc.
CARD EDGE CONNECTOR, 28 CONTACT(S), 1 ROW(S), RIGHT ANGLE, 0.019 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FH50-28S-0.5SH |
|---|---|
| Actuator Color | Black |
| Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Cable End Type | Notched |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish | Gold |
| Contact Finish Thickness | 1.25 Áin |
| Contact Finish Thickness | 0.03 Ám |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 0.5 A |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FPC, FFC |
| Height Above Board | 3.7 mm |
| Height Above Board | 0.146 in |
| Housing Color | Gray |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Locking Feature | Flip Lock |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 28 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Termination | Solder |
| Voltage Rating | 50 V |
FH50 Series
| Part | Mating Cycles | Contact Finish | Pitch [x] | Pitch [x] | Connector/Contact Type | Contact Material | Locking Feature | Housing Color | Cable End Type | Height Above Board | Height Above Board | Actuator Material | Termination | Material Flammability Rating | FFC, FCB Thickness | Flat Flex Type | Current Rating (Amps) | Mounting Type | Actuator Color | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Housing Material | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | 20 | Gold | 0.5 mm | 0.02 in | Contacts Bottom | Phosphor Bronze | Flip Lock | Gray | Notched | 3.7 mm | 0.146 in | Liquid Crystal Polymer (LCP) Halogen Free | Solder | UL94 V-0 | 0.3 mm | FFC FPC | 0.5 A | Surface Mount Right Angle | Black | 1.25 Áin | 0.03 Ám | 28 | 85 °C | -55 °C | 50 V | Liquid Crystal Polymer (LCP) Halogen Free | |
Hirose Electric USA, Inc. | 20 | Gold | 0.5 mm | 0.02 in | Contacts Bottom | Phosphor Bronze | Flip Lock | Gray | Notched | 3.7 mm | 0.146 in | Liquid Crystal Polymer (LCP) Halogen Free | Solder | UL94 V-0 | 0.3 mm | FFC FPC | 0.5 A | Surface Mount Right Angle | Black | 1.25 Áin | 0.03 Ám | 40 | 85 °C | -55 °C | 50 V | Liquid Crystal Polymer (LCP) Halogen Free | |
Hirose Electric USA, Inc. | 20 | Gold | 0.5 mm | 0.02 in | Receptacle | Phosphor Bronze | Flip Lock | Gray | Notched | 3.7 mm | 0.146 in | Liquid Crystal Polymer (LCP) | Solder | UL94 V-0 | 0.3 mm | FPC | 0.5 A | Surface Mount Right Angle | Black | 1.25 Áin | 0.03 Ám | 50 | 85 °C | -55 °C | 50 V | Liquid Crystal Polymer (LCP) | Solder Retention Zero Insertion Force (ZIF) |
Hirose Electric USA, Inc. | 20 | Gold | 0.5 mm | 0.02 in | Contacts Bottom | Phosphor Bronze | Flip Lock | Gray | Notched | 3.7 mm | 0.146 in | Liquid Crystal Polymer (LCP) | Solder | UL94 V-0 | 0.3 mm | FFC FPC | 0.5 A | Surface Mount Right Angle | Black | 1.25 Áin | 0.03 Ám | 80 | 85 °C | -55 °C | 50 V | Liquid Crystal Polymer (LCP) | Solder Retention Zero Insertion Force (ZIF) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.13 | |
| 10 | $ 2.84 | |||
| 25 | $ 2.69 | |||
| 50 | $ 2.63 | |||
| 100 | $ 2.50 | |||
| 250 | $ 2.19 | |||
| 500 | $ 2.13 | |||
| Digi-Reel® | 1 | $ 3.13 | ||
| 10 | $ 2.84 | |||
| 25 | $ 2.69 | |||
| 50 | $ 2.63 | |||
| 100 | $ 2.50 | |||
| 250 | $ 2.19 | |||
| 500 | $ 2.13 | |||
| Tape & Reel (TR) | 1000 | $ 1.79 | ||
| 2000 | $ 1.67 | |||
| 3000 | $ 1.61 | |||
| 5000 | $ 1.54 | |||
Description
General part information
FH50 Series
28 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
