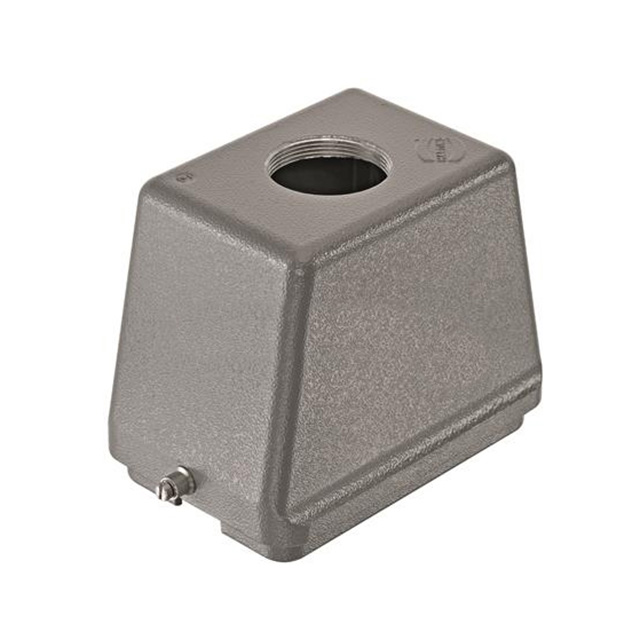

19300480448 - 19300480448

19300480448

Active
HARTING Technology Group

HEAVY DUTY CONNECTOR, HOOD, TOP ENTRY, ALUMINUM BODY, 1 LEVER, 48B

Deep-Dive with AI

Search across all available documentation for this part.

Documents19300480448 Prod Declaration CertDatasheet+2
19300480448 - 19300480448

19300480448

Active
HARTING Technology Group

HEAVY DUTY CONNECTOR, HOOD, TOP ENTRY, ALUMINUM BODY, 1 LEVER, 48B

Deep-Dive with AI

Documents19300480448 Prod Declaration CertDatasheet+2

Technical Specifications

Parameters and characteristics for this part

Specification19300480448
Connector TypeHood
Housing ColorGray
Housing FinishPowder Coated
Housing MaterialDie Cast, Aluminum
Ingress ProtectionIP65 - Dust Tight, Water Resistant
Lock LocationLocking Clip (1) on Base Bottom
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Size48 B
Size / Dimension [x]132 mm
Size / Dimension [x]5.197 in
Size / Dimension [y]3.543 in
Size / Dimension [y]90 mm
Size / Dimension [z]3.839 in
Size / Dimension [z]97.5 mm
StyleTop Entry

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 131.77
10$ 100.33
25$ 91.20
50$ 85.26
100$ 80.04
NewarkEach 1$ 109.62
5$ 101.71
10$ 94.87
25$ 88.88
50$ 83.61

Description

General part information

19300480 Series

Hood Connector Top Entry M40 48B IP65 - Dust Tight, Water Resistant
