19300480548
ActiveHARTING Technology Group

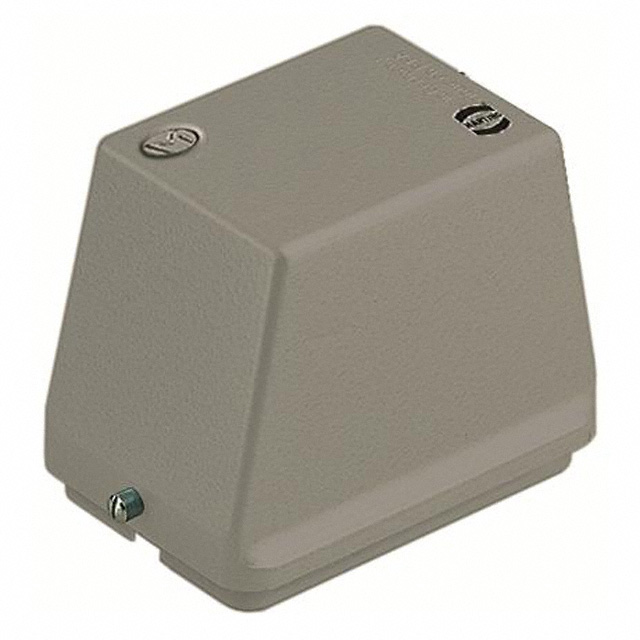

CONN HOOD SIDE ENTRY SZ48B M40
Deep-Dive with AI
Search across all available documentation for this part.
19300480548
ActiveHARTING Technology Group
CONN HOOD SIDE ENTRY SZ48B M40
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 19300480548 |
|---|---|
| Connector Type | Hood |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 48 B |
| Size / Dimension [x] | 5.197 in |
| Size / Dimension [x] | 132 mm |
| Size / Dimension [y] | 3.543 in |
| Size / Dimension [y] | 90 mm |
| Size / Dimension [z] | 108 mm |
| Size / Dimension [z] | 4.252 in |
| Style | Side Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 127.10 | |
| 10 | $ 96.69 | |||
| 25 | $ 87.86 | |||
| 50 | $ 82.12 | |||
| 100 | $ 77.07 | |||
Description
General part information
19300480 Series
Hood Connector Side Entry M40 48B IP65 - Dust Tight, Water Resistant
