R191630007

Active

Radiall USA, Inc.

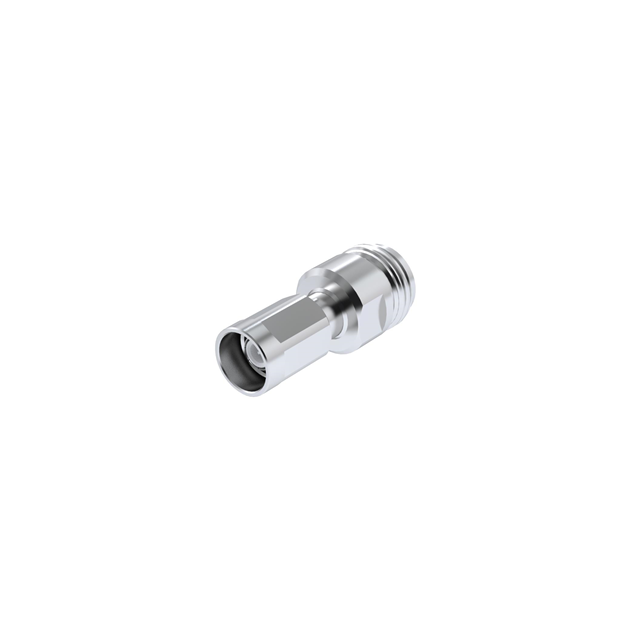

NEX 10 M-N F STR

Search across all available documentation for this part.

Active

Radiall USA, Inc.

NEX 10 M-N F STR

Technical Specifications

Parameters and characteristics for this part

Specification	R191630007

Adapter Series [Max]	N
Adapter Series [Min]	NEX10
Adapter Type	Plug to Jack
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Conversion Type	Between Series
Convert From (Adapter End)	NEX10 Plug, Male Pin
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Fastening Type	Adapter Type	Frequency - Max [Max]	Style	Center Contact Material	Impedance	Body Material	Convert From (Adapter End)	Mounting Type	Convert To (Adapter End)	Conversion Type	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Center Contact Plating	Adapter Series [Max]	Adapter Series [Min]	Center Gender	Adapter Series
Radiall USA, Inc. R191630007	Snap-On Threaded	Plug to Jack	11 GHz	Straight	Beryllium Copper	50 Ohms	Brass	NEX10 Plug Male Pin	Free Hanging (In-Line)	Female Socket N Jack	Between Series	-55 °C	125 °C	Polytetrafluoroethylene (PTFE)	Silver	N	NEX10
Radiall USA, Inc. R191631007	Snap-On Threaded	Plug to Plug	6000 MHz	Straight	Beryllium Copper	50 Ohms	Brass	7/16 Plug Male Pin	Free Hanging (In-Line)	Male Pin NEX10 Plug	Between Series	-55 °C	125 °C	Polytetrafluoroethylene (PTFE)	Silver			Male to Male	7/16 NEX10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 105.44

General part information

Adapter Coaxial Connector NEX10 Plug, Male Pin To N Jack, Female Socket 50 Ohms
