R191631007

Active

Radiall USA, Inc.

NEX10 M-7/16 M ADP

Search across all available documentation for this part.

Active

Radiall USA, Inc.

NEX10 M-7/16 M ADP

Technical Specifications

Parameters and characteristics for this part

Specification	R191631007

Adapter Series	NEX10, 7/16
Adapter Type	Plug to Plug
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	7/16 Plug, Male Pin
Convert To (Adapter End)	Male Pin, NEX10 Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Fastening Type	Adapter Type	Frequency - Max [Max]	Style	Center Contact Material	Impedance	Body Material	Convert From (Adapter End)	Mounting Type	Convert To (Adapter End)	Conversion Type	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Center Contact Plating	Adapter Series [Max]	Adapter Series [Min]	Center Gender	Adapter Series
Radiall USA, Inc. R191630007	Snap-On Threaded	Plug to Jack	11 GHz	Straight	Beryllium Copper	50 Ohms	Brass	NEX10 Plug Male Pin	Free Hanging (In-Line)	Female Socket N Jack	Between Series	-55 °C	125 °C	Polytetrafluoroethylene (PTFE)	Silver	N	NEX10
Radiall USA, Inc. R191631007	Snap-On Threaded	Plug to Plug	6000 MHz	Straight	Beryllium Copper	50 Ohms	Brass	7/16 Plug Male Pin	Free Hanging (In-Line)	Male Pin NEX10 Plug	Between Series	-55 °C	125 °C	Polytetrafluoroethylene (PTFE)	Silver			Male to Male	7/16 NEX10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 114.62

General part information

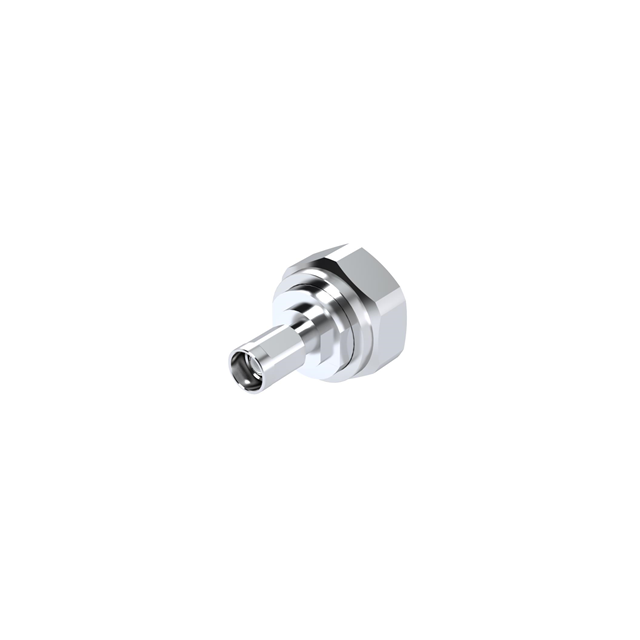

Adapter Coaxial Connector 7/16 Plug, Male Pin To NEX10 Plug, Male Pin 50 Ohms
