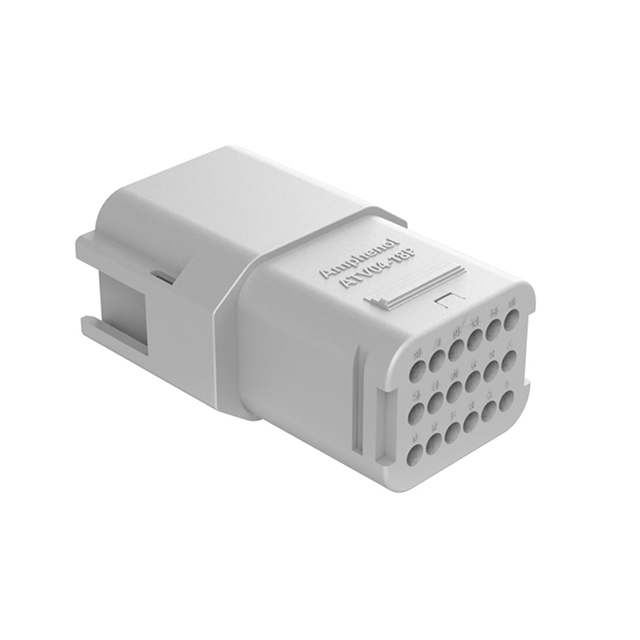

ATV04-18PA-RR01

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 18POS 16-22AWG

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 18POS 16-22AWG

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Contact Type	Insulation Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Number of Rows	Number of Positions	Color	Note	Fastening Type	Features	Cable Termination
Amphenol Sine Systems Corp ATV04-18PD-RR01	Receptacle	Male Pin	Thermoplastic	Free Hanging (In-Line)	-55 °C	125 °C	Crimp	3	18	Brown	Contacts Not Included	Latch Holder	IP67 Sealed
Amphenol Sine Systems Corp ATV04-18PC	Receptacle	Male Pin	Thermoplastic	Free Hanging (In-Line)	-55 °C	125 °C	Crimp	3	18	Green	Contacts Not Included	Latch Holder	IP67 Sealed
Amphenol Sine Systems Corp ATV04-18PA-BUS	Receptacle	Female Socket		Free Hanging (In-Line)				3	18	Gray		Push-Pull		Crimp
Amphenol Sine Systems Corp ATV04-18PB-RR01	Receptacle	Male Pin	Thermoplastic	Free Hanging (In-Line)	-55 °C	125 °C	Crimp	3	18	Black	Contacts Not Included	Latch Holder	IP67 Sealed
Amphenol Sine Systems Corp ATV04-38PC-S2	Receptacle	Male Pin	Thermoplastic		-40 °C	125 °C	Crimp		38	Gray	Contacts Not Included	Latch Holder	IP67 Mounting Flange Sealed
Amphenol Sine Systems Corp ATV04-38PA-S2	Receptacle	Male Pin	Thermoplastic		-40 °C	125 °C	Crimp		38	Gray	Contacts Not Included	Latch Holder	IP67 Mounting Flange Sealed
Amphenol Sine Systems Corp ATV04-18PA-RR01	Receptacle	Male Pin	Thermoplastic	Free Hanging (In-Line)	-55 °C	125 °C	Crimp	3	18	Gray	Contacts Not Included	Latch Holder	IP67 Sealed
Amphenol Sine Systems Corp ATV04-18PB-BUS	Receptacle	Female Socket		Free Hanging (In-Line)				3	18	Black		Push-Pull		Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 Rectangular Connectors - Housings Receptacle Gray
