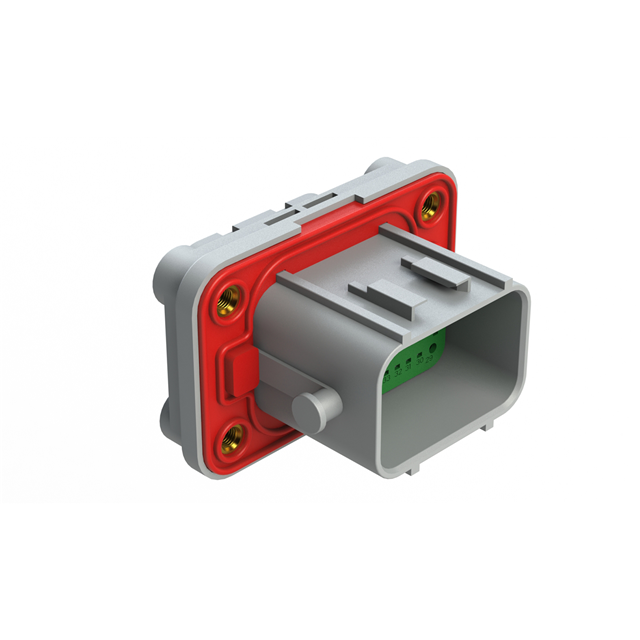

ATV04-38PA-S2

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 38POS

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 38POS

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Contact Type	Insulation Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Number of Rows	Number of Positions	Color	Note	Fastening Type	Features	Cable Termination
Amphenol Sine Systems Corp ATV04-18PD-RR01	Receptacle	Male Pin	Thermoplastic	Free Hanging (In-Line)	-55 °C	125 °C	Crimp	3	18	Brown	Contacts Not Included	Latch Holder	IP67 Sealed
Amphenol Sine Systems Corp ATV04-18PC	Receptacle	Male Pin	Thermoplastic	Free Hanging (In-Line)	-55 °C	125 °C	Crimp	3	18	Green	Contacts Not Included	Latch Holder	IP67 Sealed
Amphenol Sine Systems Corp ATV04-18PA-BUS	Receptacle	Female Socket		Free Hanging (In-Line)				3	18	Gray		Push-Pull		Crimp
Amphenol Sine Systems Corp ATV04-18PB-RR01	Receptacle	Male Pin	Thermoplastic	Free Hanging (In-Line)	-55 °C	125 °C	Crimp	3	18	Black	Contacts Not Included	Latch Holder	IP67 Sealed
Amphenol Sine Systems Corp ATV04-38PC-S2	Receptacle	Male Pin	Thermoplastic		-40 °C	125 °C	Crimp		38	Gray	Contacts Not Included	Latch Holder	IP67 Mounting Flange Sealed
Amphenol Sine Systems Corp ATV04-38PA-S2	Receptacle	Male Pin	Thermoplastic		-40 °C	125 °C	Crimp		38	Gray	Contacts Not Included	Latch Holder	IP67 Mounting Flange Sealed
Amphenol Sine Systems Corp ATV04-18PA-RR01	Receptacle	Male Pin	Thermoplastic	Free Hanging (In-Line)	-55 °C	125 °C	Crimp	3	18	Gray	Contacts Not Included	Latch Holder	IP67 Sealed
Amphenol Sine Systems Corp ATV04-18PB-BUS	Receptacle	Female Socket		Free Hanging (In-Line)				3	18	Black		Push-Pull		Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

38 Rectangular Connectors - Housings Receptacle Gray
