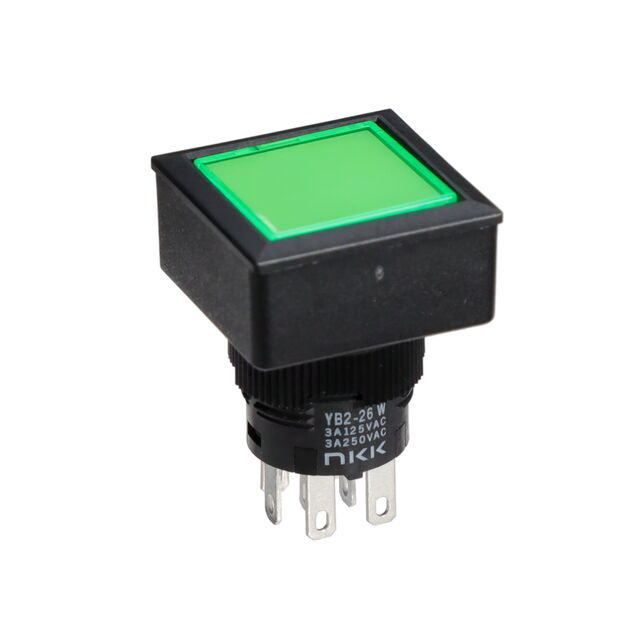

YB226CWSKW01-5F05-FB

Active

NKK Switches

DPDT ON-ON PANEL SEAL SQUARE BLA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB226CWSKW01-5F05-FB

Actuator Marking	No Marking
Circuit	DPDT
Color - Actuator/Cap	Green
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Features	Tactile/Audible Feedback
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	5 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	21 mm
Panel Cutout Dimensions [y]	21 mm
Switch Function	On-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

YB226C Series

Part	Switch Function	Termination Style	Termination Style	Termination Style	Illumination Type, Color	Operating Temperature [Max]	Operating Temperature [Min]	Type	Voltage Rating - AC	Current Rating (Amps)	Ingress Protection	Features	Illumination Voltage (Nominal)	Color - Actuator/Cap	Circuit	Voltage Rating - DC	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Actuator Marking	Mounting Type	Mechanical Life	Electrical Life	Actuator Type	Panel Cutout Dimensions [diameter]
NKK Switches YB226CWSKW01-5F05-FB	On-On	0.11 in	Quick Connect Solder	2.8 mm	Green LED	50 °C	-25 °C	Illuminated Standard	125 V	3 A	IP65 - Dust Tight Water Resistant	Tactile/Audible Feedback	5 VDC	Green	DPDT	30 V	21 mm	21 mm	No Marking	Panel Mount Front	200000 Cycles	100000 Cycles
NKK Switches YB226CWCKW01-5D-JB	On-On	0.11 in	Quick Connect Solder	2.8 mm	Amber LED	50 °C	-25 °C	Illuminated Standard	125 V	3 A	IP65 - Dust Tight Water Resistant	Tactile Feedback	2 VDC	Clear	DPDT	30 V			No Marking	Panel Mount Front	200000 Cycles	100000 Cycles	Button Flush Round	22 mm
NKK Switches YB226CWCKW01-5C-JS	On-On	0.11 in	Quick Connect Solder	2.8 mm	LED Red	50 °C	-25 °C	Illuminated Standard	125 V	3 A	IP65 - Dust Tight Water Resistant	Tactile Feedback	1.9 VDC	Silver	DPDT	30 V			No Marking	Panel Mount Front	200000 Cycles	100000 Cycles	Button Flush Round	22 mm
NKK Switches YB226CWCKG01-5F05-FB	On-On	0.11 in	Quick Connect Solder	2.8 mm	Green LED	50 °C	-25 °C	Illuminated Standard	28 V	0.4 VA	IP65 - Dust Tight Water Resistant	Tactile Feedback	5 VDC	Green	DPDT	28 V			No Marking	Panel Mount Front	200000 Cycles	100000 Cycles	Button Flush Round	22 mm
NKK Switches YB226CWSKW01-JB	On-On	0.11 in	Quick Connect Solder	2.8 mm		70 °C	-25 °C	Standard	125 V	3 A	IP65 - Dust Tight Water Resistant	Tactile/Audible Feedback		Clear	DPDT	30 V	21 mm	21 mm	No Marking	Panel Mount Front	200000 Cycles	100000 Cycles
NKK Switches YB226CWCPW01-5C-JS	On-On	0.11 in	Quick Connect Solder	2.8 mm	LED Red	50 °C	-25 °C	Illuminated Standard	125 V	3 A	IP65 - Dust Tight Water Resistant	Tactile/Audible Feedback	1.9 VDC	Silver	DPDT	30 V			No Marking	Panel Mount Front	200000 Cycles	100000 Cycles	Button Flush Round	22 mm
NKK Switches YB226CWCKW01-5C-CB	On-On	0.11 in	Quick Connect Solder	2.8 mm	LED Red	50 °C	-25 °C	Illuminated Standard	125 V	3 A	IP65 - Dust Tight Water Resistant	Tactile Feedback	1.9 VDC	Red	DPDT	30 V			No Marking	Panel Mount Front	200000 Cycles	100000 Cycles	Button Flush Round	22 mm
NKK Switches YB226CWCKW01-5D-EB	On-On	0.11 in	Quick Connect Solder	2.8 mm	Amber LED	50 °C	-25 °C	Illuminated Standard	125 V	3 A	IP65 - Dust Tight Water Resistant	Tactile Feedback	2 VDC	Yellow (White Filter/Diffuser)	DPDT	30 V			No Marking	Panel Mount Front	200000 Cycles	100000 Cycles	Button Flush Round	22 mm
NKK Switches YB226CWCPW01	On-On	0.11 in	Quick Connect Solder	2.8 mm		70 °C	-25 °C	Standard	125 V	3 A	IP65 - Dust Tight Water Resistant	Tactile/Audible Feedback			DPDT	30 V			No Marking	Panel Mount Front	200000 Cycles	100000 Cycles	Plunger for Cap	22 mm
NKK Switches YB226CWSKG01	On-On	0.11 in	Quick Connect Solder	2.8 mm		70 °C	-25 °C	Standard	28 V	0.4 VA	IP65 - Dust Tight Water Resistant	Tactile/Audible Feedback			DPDT	28 V	21 mm	21 mm	No Marking	Panel Mount Front	200000 Cycles	100000 Cycles	Plunger for Cap
