YB226CWCKW01-5C-CB

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

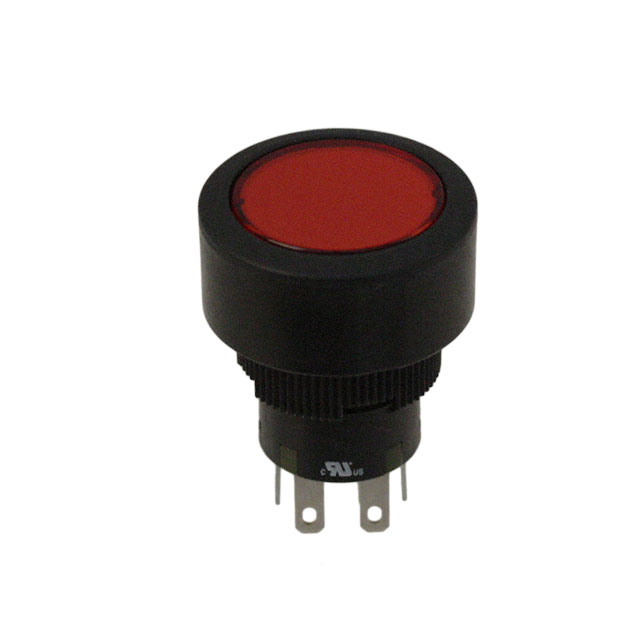

YB226CWCKW01-5C-CB

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB226CWCKW01-5C-CB

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	DPDT
Color - Actuator/Cap	Red
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Features	Tactile Feedback
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	1.9 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22 mm
Switch Function	On-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

YB226C Series

Part	Switch Function	Termination Style	Termination Style	Termination Style	Illumination Type, Color	Operating Temperature [Max]	Operating Temperature [Min]	Type	Voltage Rating - AC	Current Rating (Amps)	Ingress Protection	Features	Illumination Voltage (Nominal)	Color - Actuator/Cap	Circuit	Voltage Rating - DC	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Actuator Marking	Mounting Type	Mechanical Life	Electrical Life	Actuator Type	Panel Cutout Dimensions [diameter]
NKK Switches YB226CWSKW01-5F05-FB	On-On	0.11 in	Quick Connect Solder	2.8 mm	Green LED	50 °C	-25 °C	Illuminated Standard	125 V	3 A	IP65 - Dust Tight Water Resistant	Tactile/Audible Feedback	5 VDC	Green	DPDT	30 V	21 mm	21 mm	No Marking	Panel Mount Front	200000 Cycles	100000 Cycles
NKK Switches YB226CWCKW01-5D-JB	On-On	0.11 in	Quick Connect Solder	2.8 mm	Amber LED	50 °C	-25 °C	Illuminated Standard	125 V	3 A	IP65 - Dust Tight Water Resistant	Tactile Feedback	2 VDC	Clear	DPDT	30 V			No Marking	Panel Mount Front	200000 Cycles	100000 Cycles	Button Flush Round	22 mm
NKK Switches YB226CWCKW01-5C-JS	On-On	0.11 in	Quick Connect Solder	2.8 mm	LED Red	50 °C	-25 °C	Illuminated Standard	125 V	3 A	IP65 - Dust Tight Water Resistant	Tactile Feedback	1.9 VDC	Silver	DPDT	30 V			No Marking	Panel Mount Front	200000 Cycles	100000 Cycles	Button Flush Round	22 mm
NKK Switches YB226CWCKG01-5F05-FB	On-On	0.11 in	Quick Connect Solder	2.8 mm	Green LED	50 °C	-25 °C	Illuminated Standard	28 V	0.4 VA	IP65 - Dust Tight Water Resistant	Tactile Feedback	5 VDC	Green	DPDT	28 V			No Marking	Panel Mount Front	200000 Cycles	100000 Cycles	Button Flush Round	22 mm
NKK Switches YB226CWSKW01-JB	On-On	0.11 in	Quick Connect Solder	2.8 mm		70 °C	-25 °C	Standard	125 V	3 A	IP65 - Dust Tight Water Resistant	Tactile/Audible Feedback		Clear	DPDT	30 V	21 mm	21 mm	No Marking	Panel Mount Front	200000 Cycles	100000 Cycles
NKK Switches YB226CWCPW01-5C-JS	On-On	0.11 in	Quick Connect Solder	2.8 mm	LED Red	50 °C	-25 °C	Illuminated Standard	125 V	3 A	IP65 - Dust Tight Water Resistant	Tactile/Audible Feedback	1.9 VDC	Silver	DPDT	30 V			No Marking	Panel Mount Front	200000 Cycles	100000 Cycles	Button Flush Round	22 mm
NKK Switches YB226CWCKW01-5C-CB	On-On	0.11 in	Quick Connect Solder	2.8 mm	LED Red	50 °C	-25 °C	Illuminated Standard	125 V	3 A	IP65 - Dust Tight Water Resistant	Tactile Feedback	1.9 VDC	Red	DPDT	30 V			No Marking	Panel Mount Front	200000 Cycles	100000 Cycles	Button Flush Round	22 mm
NKK Switches YB226CWCKW01-5D-EB	On-On	0.11 in	Quick Connect Solder	2.8 mm	Amber LED	50 °C	-25 °C	Illuminated Standard	125 V	3 A	IP65 - Dust Tight Water Resistant	Tactile Feedback	2 VDC	Yellow (White Filter/Diffuser)	DPDT	30 V			No Marking	Panel Mount Front	200000 Cycles	100000 Cycles	Button Flush Round	22 mm
NKK Switches YB226CWCPW01	On-On	0.11 in	Quick Connect Solder	2.8 mm		70 °C	-25 °C	Standard	125 V	3 A	IP65 - Dust Tight Water Resistant	Tactile/Audible Feedback			DPDT	30 V			No Marking	Panel Mount Front	200000 Cycles	100000 Cycles	Plunger for Cap	22 mm
NKK Switches YB226CWSKG01	On-On	0.11 in	Quick Connect Solder	2.8 mm		70 °C	-25 °C	Standard	28 V	0.4 VA	IP65 - Dust Tight Water Resistant	Tactile/Audible Feedback			DPDT	28 V	21 mm	21 mm	No Marking	Panel Mount Front	200000 Cycles	100000 Cycles	Plunger for Cap

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.45
		10	$ 29.53
		25	$ 28.16
		50	$ 26.27
		100	$ 25.24
		250	$ 23.52
Newark	Each	1	$ 59.12
		5	$ 52.72
		10	$ 50.93
		25	$ 48.11
		50	$ 44.79
		100	$ 39.67
		250	$ 35.57

Description

General part information

YB226C Series

Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Front

Documents

Technical documentation and resources
