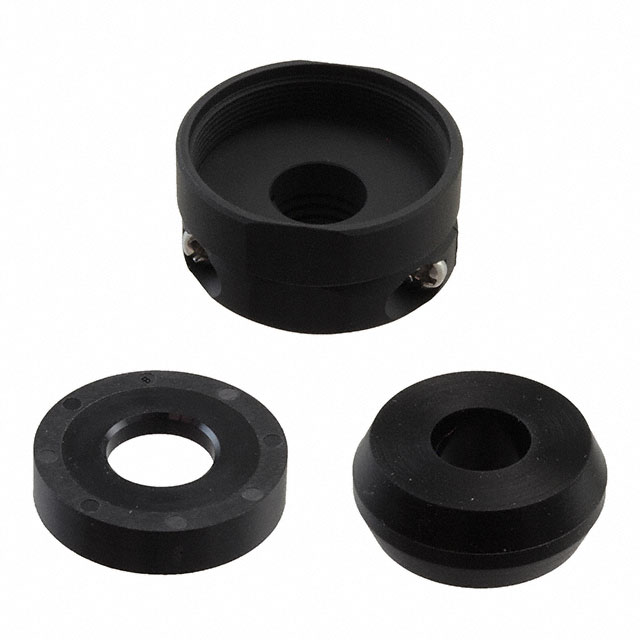

JR25WCC-10(72)
ActiveJIS C 5432 STANDARD WATERPROOF CONNECTORS; HRS NO: 114-2064-5 72; SHELL SIZE (DIA): 25; APPLICABLE CABLE: CABLE OUTER DIA.F10; OPERATING TEMPERATURE RANGE (DEGREES C): -25 TO 85; GENERAL DESCRIPTION: STANDARD CABLE CLAMP; CHANGED MATERIAL:GASKET
Deep-Dive with AI
Search across all available documentation for this part.
JR25WCC-10(72)
ActiveJIS C 5432 STANDARD WATERPROOF CONNECTORS; HRS NO: 114-2064-5 72; SHELL SIZE (DIA): 25; APPLICABLE CABLE: CABLE OUTER DIA.F10; OPERATING TEMPERATURE RANGE (DEGREES C): -25 TO 85; GENERAL DESCRIPTION: STANDARD CABLE CLAMP; CHANGED MATERIAL:GASKET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | JR25WCC-10(72) |
|---|---|
| Cable Exit | 180 ° |
| Cable Opening [custom] | 10 mm |
| Cable Opening [custom] | 0.394 in |
| Color | Black |
| Diameter - Outside [diameter] | 1.22 in |
| Diameter - Outside [diameter] | 30.99 mm |
| Features | Clamp Screws, Washer, Gasket |
| For Use With/Related Products | JR-W Series Plug |
| Includes | 2 Screws, 1 Gasket, 1 Cable Clamp, 1 Washer |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material | Brass, Zinc Alloy, Aluminum Alloy |
| Plating | Chrome |
| Shell Size - Insert | 25 |
| Thread Size | M28x0.75 |
| Type | Cable Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 23.51 | |
| 10 | $ 18.12 | |||
| 25 | $ 16.40 | |||
| 50 | $ 15.24 | |||
| 100 | $ 14.19 | |||
| 250 | $ 12.96 | |||
| 500 | $ 12.12 | |||
Description
General part information
JR25WCC Series
Black Connector Cable Clamp M28x0.75 25
