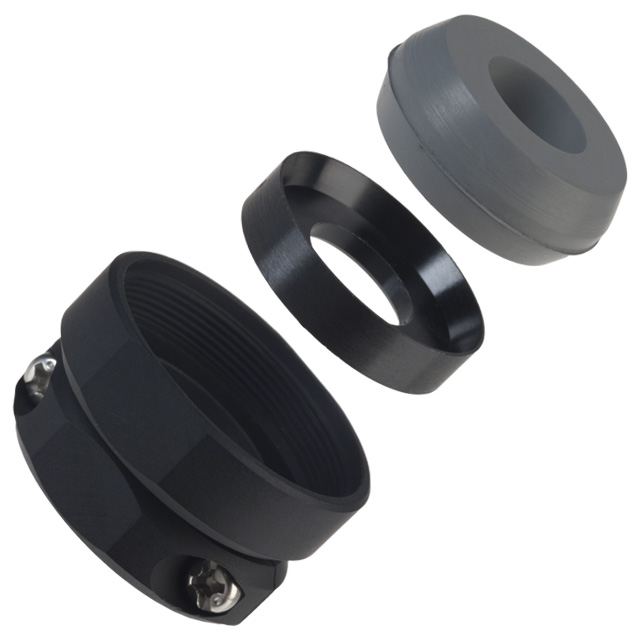

JR25WCC-12

Obsolete

Hirose Electric USA, Inc.

CONN CABLE CLAMP SZ25 BLACK M28

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

JR25WCC-12

Obsolete

Hirose Electric USA, Inc.

CONN CABLE CLAMP SZ25 BLACK M28

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JR25WCC-12

Cable Exit	180 °
Cable Opening [diameter]	12 mm
Cable Opening [diameter]	0.472 in
Color	Black
Diameter - Outside [diameter]	1.22 in
Diameter - Outside [diameter]	30.99 mm
Features	Clamp Screws, Washer, Gasket
For Use With/Related Products	JR-W Series Plug
Includes	2 Screws, 1 Gasket, 1 Cable Clamp, 1 Washer
Ingress Protection	IP67 - Dust Tight, Waterproof
Material	Brass, Zinc Alloy, Aluminum Alloy
Plating	Chrome
Shell Size - Insert	25
Thread Size	M28x0.75
Type	Cable Clamp

JR25WCC Series

Part	Type	Includes	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Material Flammability Rating	Features	Cable Exit	Ingress Protection	Cable Opening [custom]	Cable Opening [custom]	Thread Size	Plating	For Use With/Related Products	Color	Material	Shell Size - Insert	Cable Opening [diameter]	Cable Opening [diameter]
Hirose Electric USA, Inc. JR25WCC-14(31)	Cable Clamp	1 Cable Clamp 1 Gasket 1 Washer 2 Screws	1.22 in	30.99 mm	UL94 V-0	Clamp Screws Gasket Washer	180 °	IP67 - Dust Tight Waterproof	14 mm	0.551 in	M28x0.75	Chrome	JR-W Series Plug	Black	Zinc Alloy	25
Hirose Electric USA, Inc. JR25WCC-10	Cable Clamp	1 Cable Clamp 1 Gasket 1 Washer 2 Screws	1.22 in	30.99 mm		Clamp Screws Gasket Washer	180 °	IP67 - Dust Tight Waterproof	10 mm	0.394 in	M28x0.75	Chrome	JR-W Series Plug	Black	Aluminum Alloy Brass Zinc Alloy	25
Hirose Electric USA, Inc. JR25WCC-12	Cable Clamp	1 Cable Clamp 1 Gasket 1 Washer 2 Screws	1.22 in	30.99 mm		Clamp Screws Gasket Washer	180 °	IP67 - Dust Tight Waterproof			M28x0.75	Chrome	JR-W Series Plug	Black	Aluminum Alloy Brass Zinc Alloy	25	12 mm	0.472 in
Hirose Electric USA, Inc. JR25WCC-8(71)	Cable Clamp	1 Cable Clamp 1 Gasket 1 Washer 2 Screws	1.22 in	30.99 mm		Clamp Screws Gasket Washer	180 °	IP67 - Dust Tight Waterproof			M28x0.75	Chrome	JR-W Series Plug	Black	Aluminum Alloy Brass Zinc Alloy	25	8 mm	0.315 in
Hirose Electric USA, Inc. JR25WCC-10(71)	Cable Clamp	1 Cable Clamp 1 Gasket 1 Washer 2 Screws	1.22 in	30.99 mm		Clamp Screws Gasket Washer	180 °	IP67 - Dust Tight Waterproof	10 mm	0.394 in	M28x0.75	Chrome	JR-W Series Plug	Black	Aluminum Alloy Brass Zinc Alloy	25
Hirose Electric USA, Inc. JR25WCC-8(72)	Cable Clamp	1 Cable Clamp 1 Gasket 1 Washer 2 Screws	1.22 in	30.99 mm		Clamp Screws Gasket Washer	180 °	IP67 - Dust Tight Waterproof			M28x0.75	Chrome	JR-W Series Plug	Black	Aluminum Alloy Brass Zinc Alloy	25	8 mm	0.315 in
Hirose Electric USA, Inc. JR25WCC-10(72)	Cable Clamp	1 Cable Clamp 1 Gasket 1 Washer 2 Screws	1.22 in	30.99 mm		Clamp Screws Gasket Washer	180 °	IP67 - Dust Tight Waterproof	10 mm	0.394 in	M28x0.75	Chrome	JR-W Series Plug	Black	Aluminum Alloy Brass Zinc Alloy	25
Hirose Electric USA, Inc. JR25WCC-15(31)	Cable Clamp	1 Cable Clamp 1 Gasket 1 Washer 2 Screws	1.22 in	30.99 mm	UL94 V-0	Clamp Screws Gasket Washer	180 °	IP67 - Dust Tight Waterproof	15 mm	0.591 in	M28x0.75	Chrome	JR-W Series Plug	Black	Brass	25

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

JR25WCC Series

Black Connector Cable Clamp M28x0.75 25
