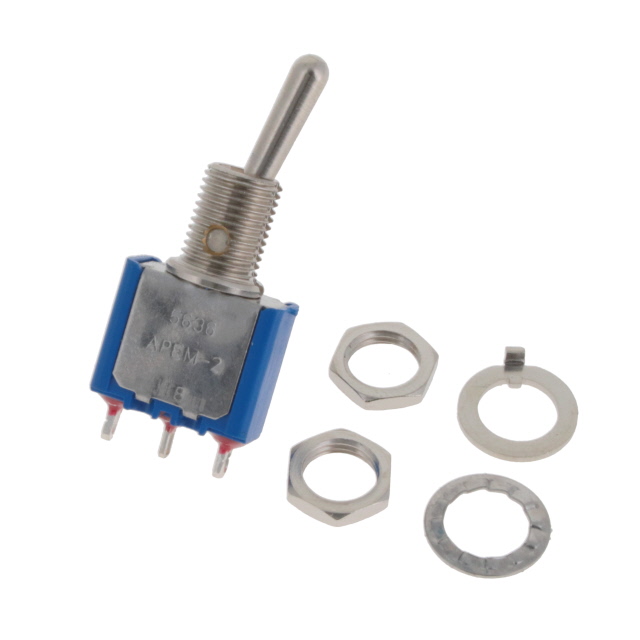

5636ABULCSA

Active

APEM

TOGGLE SWITCH 5000 MINIATURE ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

APEM

TOGGLE SWITCH 5000 MINIATURE ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	5636ABULCSA

Actuator Material	Brass, Nickel Plated
Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	SPDT
Current Rating (Amps)	4 A, 6 A
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Actuator Material	Actuator Type	Illumination	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Features	Panel Cutout Dimensions [diameter]	Termination Style	Switch Function	Current Rating (Amps)	Voltage Rating - DC	Bushing Thread	Voltage Rating - AC	Circuit	Actuator Length [x]
APEM 5636AKB	Brass Nickel Plated	Standard Round	Non-Illuminated	50000 Cycles	85 °C	-40 °C	Front Panel Sealing	6.5 mm	Solder Lug	On-On	4 A 6 A	30 V	1/4-40	125 V	SPDT
APEM 5636AKB2V	Brass Nickel Plated	Locking Lever	Non-Illuminated	50000 Cycles	85 °C	-40 °C	Front Panel Sealing	6.5 mm	Solder Lug	On-On	4 A 6 A	30 V	1/4-40	125 V	SPDT	14.75 mm
APEM 5636AB2V	Brass Nickel Plated	Locking Lever	Non-Illuminated	50000 Cycles	85 °C	-40 °C	Epoxy Sealed Terminals	6.5 mm	Solder Lug	On-On	4 A 6 A	30 V	1/4-40	125 V	SPDT	14.75 mm
APEM 5636ABULCSA	Brass Nickel Plated	Standard Round	Non-Illuminated	50000 Cycles	85 °C	-40 °C	Epoxy Sealed Terminals	6.5 mm	Solder Lug	On-On	4 A 6 A	30 V	1/4-40	125 V	SPDT
APEM 5636AGKB2V	Brass Nickel Plated	Locking Lever	Non-Illuminated	50000 Cycles	85 °C	-40 °C	Matte Black Finish	6.5 mm	Solder Lug	On-On	4 A 6 A	30 V	1/4-40	125 V	SPDT	14.75 mm
APEM 5636AB9	Brass Nickel Plated	Flatted	Non-Illuminated	50000 Cycles	85 °C	-40 °C	Epoxy Sealed Terminals	6.5 mm	Solder Lug	On-On	4 A 6 A	30 V		125 V	SPDT	11.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Panel Mount
