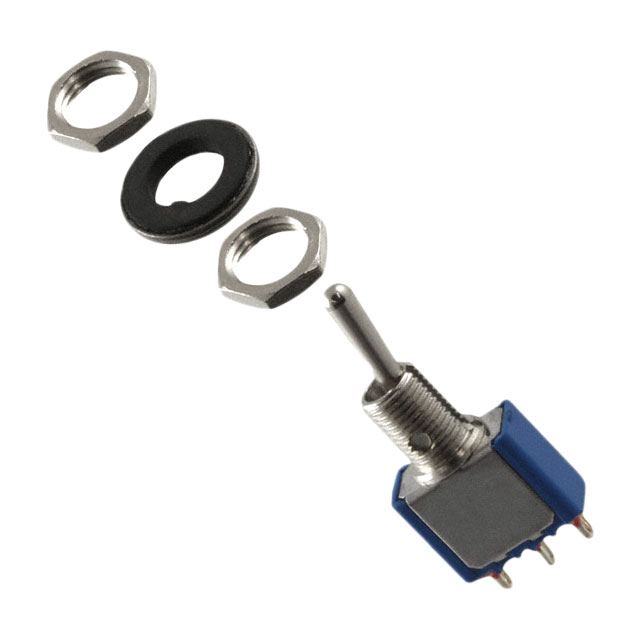

5636AKB

Active

APEM

SWITCH TOGGLE SPDT 6A 125V

Search across all available documentation for this part.

Active

APEM

SWITCH TOGGLE SPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	5636AKB

Actuator Material	Brass, Nickel Plated
Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	SPDT
Current Rating (Amps)	4 A, 6 A
Electrical Life	50000 Cycles
Features	Front Panel Sealing
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Actuator Material	Actuator Type	Illumination	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Features	Panel Cutout Dimensions [diameter]	Termination Style	Switch Function	Current Rating (Amps)	Voltage Rating - DC	Bushing Thread	Voltage Rating - AC	Circuit	Actuator Length [x]
APEM 5636AKB	Brass Nickel Plated	Standard Round	Non-Illuminated	50000 Cycles	85 °C	-40 °C	Front Panel Sealing	6.5 mm	Solder Lug	On-On	4 A 6 A	30 V	1/4-40	125 V	SPDT
APEM 5636AKB2V	Brass Nickel Plated	Locking Lever	Non-Illuminated	50000 Cycles	85 °C	-40 °C	Front Panel Sealing	6.5 mm	Solder Lug	On-On	4 A 6 A	30 V	1/4-40	125 V	SPDT	14.75 mm
APEM 5636AB2V	Brass Nickel Plated	Locking Lever	Non-Illuminated	50000 Cycles	85 °C	-40 °C	Epoxy Sealed Terminals	6.5 mm	Solder Lug	On-On	4 A 6 A	30 V	1/4-40	125 V	SPDT	14.75 mm
APEM 5636ABULCSA	Brass Nickel Plated	Standard Round	Non-Illuminated	50000 Cycles	85 °C	-40 °C	Epoxy Sealed Terminals	6.5 mm	Solder Lug	On-On	4 A 6 A	30 V	1/4-40	125 V	SPDT
APEM 5636AGKB2V	Brass Nickel Plated	Locking Lever	Non-Illuminated	50000 Cycles	85 °C	-40 °C	Matte Black Finish	6.5 mm	Solder Lug	On-On	4 A 6 A	30 V	1/4-40	125 V	SPDT	14.75 mm
APEM 5636AB9	Brass Nickel Plated	Flatted	Non-Illuminated	50000 Cycles	85 °C	-40 °C	Epoxy Sealed Terminals	6.5 mm	Solder Lug	On-On	4 A 6 A	30 V		125 V	SPDT	11.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Panel Mount
