2961532

Active

Phoenix Contact

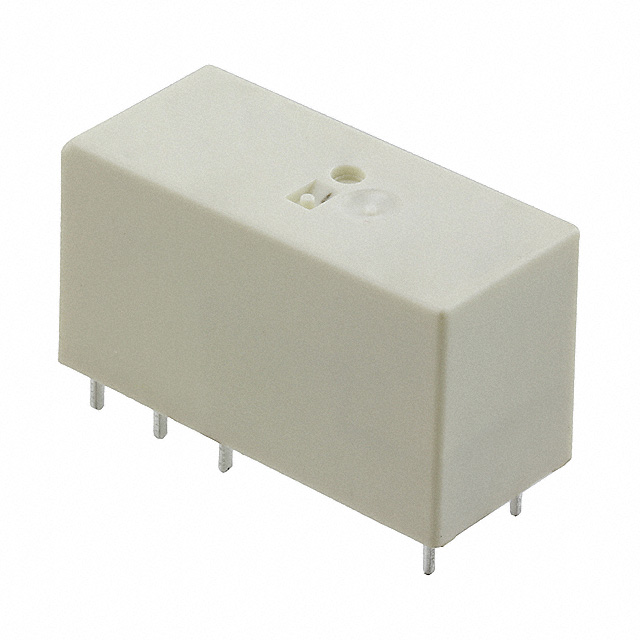

RELAY GEN PURPOSE SPDT 16A 12V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 16A 12V

Technical Specifications

Parameters and characteristics for this part

Part	Relay Type	Mounting Type	Coil Resistance	Contact Rating (Current)	Contact Material	Switching Voltage	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Contact Form	Release Time	Approval Agency	Coil Type	Coil Current	Coil Voltage	Operate Time
Phoenix Contact 2961503	General Purpose	Through Hole	750 Ohms	16 A	Silver Nickel (AgNi)	250 VAC 250 VDC	PC Pin	85 °C	-40 °C	SPDT (1 Form C)	9 ms	cULus EAC UR	Non Latching	32 mA	24 VAC	12 ms
Phoenix Contact 2961529	General Purpose	Through Hole	32500 Ohms	16 A	Gold (Au) Silver Nickel (AgNi)	250 VAC 250 VDC	PC Pin	85 °C	-40 °C	SPDT (1 Form C)	9 ms	cULus EAC UR	Non Latching	3 mA	230 VAC	12 ms
Phoenix Contact 2961516	General Purpose	Through Hole	8.1 kOhms	16 A	Gold (Au) Silver Nickel (AgNi)	250 VAC 250 VDC	PC Pin	85 °C	-40 °C	SPDT (1 Form C)	9 ms	cULus EAC UR	Non Latching	7 mA	120 VAC	12 ms
Phoenix Contact 2961545	General Purpose	Through Hole	1440 Ohms	16 A	Gold (Au) Silver Nickel (AgNi)	250 VAC 250 VDC	PC Pin	85 °C	-40 °C	SPDT (1 Form C)	3 ms	cULus EAC UR	Non Latching	17 mA	24 VDC	7 ms
Phoenix Contact 2961532	General Purpose	Through Hole	360 Ohms	16 A	Gold (Au) Silver Nickel (AgNi)	250 VAC 250 VDC	PC Pin	85 °C	-40 °C	SPDT (1 Form C)	3 ms	cULus EAC UR	Non Latching	33 mA	12 VDC	7 ms
Phoenix Contact 2961561	General Purpose	Through Hole	26.6 kOhms	16 A	Gold (Au) Silver Nickel (AgNi)	250 VAC 250 VDC	PC Pin	85 °C	-40 °C	SPDT (1 Form C)	3 ms	cULus EAC UR	Non Latching	4.1 mA	110 VDC	7 ms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 8.63

General part information

General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
