2961561
LTBPhoenix Contact

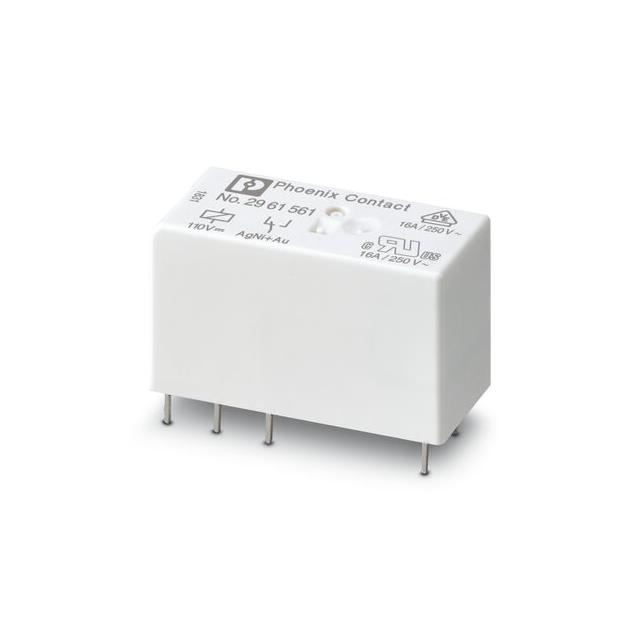

RELAY GEN PURPOSE SPDT 16A 110V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2961561
LTBPhoenix Contact
RELAY GEN PURPOSE SPDT 16A 110V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2961561 |
|---|---|
| Approval Agency | cULus, EAC, UR |
| Coil Current | 4.1 mA |
| Coil Resistance | 26.6 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 110 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi), Gold (Au) |
| Contact Rating (Current) | 16 A |
| Mounting Type | Through Hole |
| Operate Time | 7 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 3 ms |
| Switching Voltage | 250 VAC, 250 VDC |
| Termination Style | PC Pin |
29615 Series
| Part | Relay Type | Mounting Type | Coil Resistance | Contact Rating (Current) | Contact Material | Switching Voltage | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Contact Form | Release Time | Approval Agency | Coil Type | Coil Current | Coil Voltage | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact | General Purpose | Through Hole | 750 Ohms | 16 A | Silver Nickel (AgNi) | 250 VAC 250 VDC | PC Pin | 85 °C | -40 °C | SPDT (1 Form C) | 9 ms | cULus EAC UR | Non Latching | 32 mA | 24 VAC | 12 ms |
Phoenix Contact | General Purpose | Through Hole | 32500 Ohms | 16 A | Gold (Au) Silver Nickel (AgNi) | 250 VAC 250 VDC | PC Pin | 85 °C | -40 °C | SPDT (1 Form C) | 9 ms | cULus EAC UR | Non Latching | 3 mA | 230 VAC | 12 ms |
Phoenix Contact | General Purpose | Through Hole | 8.1 kOhms | 16 A | Gold (Au) Silver Nickel (AgNi) | 250 VAC 250 VDC | PC Pin | 85 °C | -40 °C | SPDT (1 Form C) | 9 ms | cULus EAC UR | Non Latching | 7 mA | 120 VAC | 12 ms |
Phoenix Contact | General Purpose | Through Hole | 1440 Ohms | 16 A | Gold (Au) Silver Nickel (AgNi) | 250 VAC 250 VDC | PC Pin | 85 °C | -40 °C | SPDT (1 Form C) | 3 ms | cULus EAC UR | Non Latching | 17 mA | 24 VDC | 7 ms |
Phoenix Contact | General Purpose | Through Hole | 360 Ohms | 16 A | Gold (Au) Silver Nickel (AgNi) | 250 VAC 250 VDC | PC Pin | 85 °C | -40 °C | SPDT (1 Form C) | 3 ms | cULus EAC UR | Non Latching | 33 mA | 12 VDC | 7 ms |
Phoenix Contact | General Purpose | Through Hole | 26.6 kOhms | 16 A | Gold (Au) Silver Nickel (AgNi) | 250 VAC 250 VDC | PC Pin | 85 °C | -40 °C | SPDT (1 Form C) | 3 ms | cULus EAC UR | Non Latching | 4.1 mA | 110 VDC | 7 ms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 13.47 | |
Description
General part information
29615 Series
General Purpose Relay SPDT (1 Form C) 110VDC Coil Through Hole
