SY4S-62

Active

IDEC

RELAY SOCKET, THROUGH HOLE, 14 PINS, 7 A, 250 V, GT5Y SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

SY4S-62

Active

IDEC

RELAY SOCKET, THROUGH HOLE, 14 PINS, 7 A, 250 V, GT5Y SERIES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SY4S-62

For Use With/Related Products	RY Series
Mounting Type	Through Hole
Number of Positions	14
Termination Style	PC Pin
Type	Socket

SY4S Series

Part	Mounting Type	Termination Style	Number of Positions	For Use With/Related Products	Type	Accessory Type	Features
IDEC SY4S-05	DIN Rail	Screw Terminal	14	RY Series	Socket
IDEC SY4S-51F1				RY Series Sockets		Clip Hold Down
IDEC SY4S-62	Through Hole	PC Pin	14	RY Series	Socket
IDEC SY4S-05C	DIN Rail	Screw Terminal	14	RY Series	Socket		Finger-Safe (IP20) Terminals

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.35
		10	$ 2.05
		25	$ 1.95
		50	$ 1.87
		100	$ 1.79
		250	$ 1.70
		500	$ 1.63
		1000	$ 1.57
		5000	$ 1.43
Newark	Each	1	$ 2.52
		10	$ 2.39
		25	$ 2.27
		50	$ 2.14
		100	$ 2.02

Description

General part information

SY4S Series

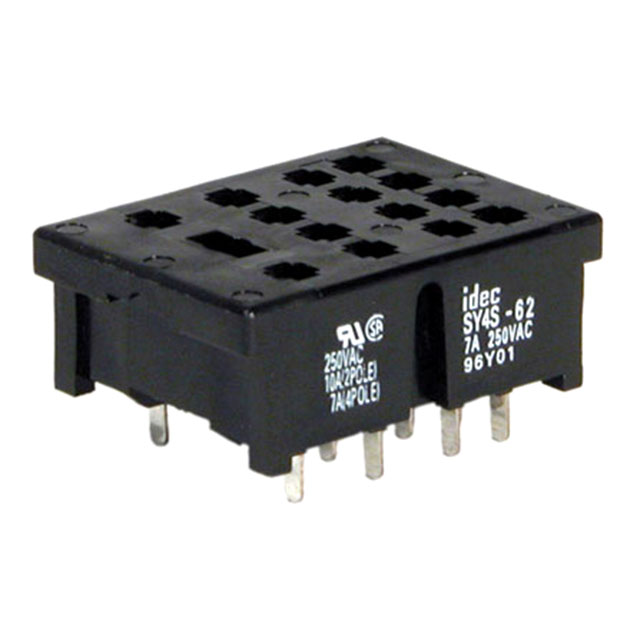

The SY4S-62 is a 14-pin Relay Socket with through hole terminals. Suitable for use with RY4S, RY42S, RU4S, RU42S, RY2KS relays, GT5Y timer. This high density relay socket comes with SY4S-51F4, SY4S-02F1, SY4S-02F3 (when mounting a relay with check button) hold-down spring. This socket is ideal for solder/PCB mounting.
