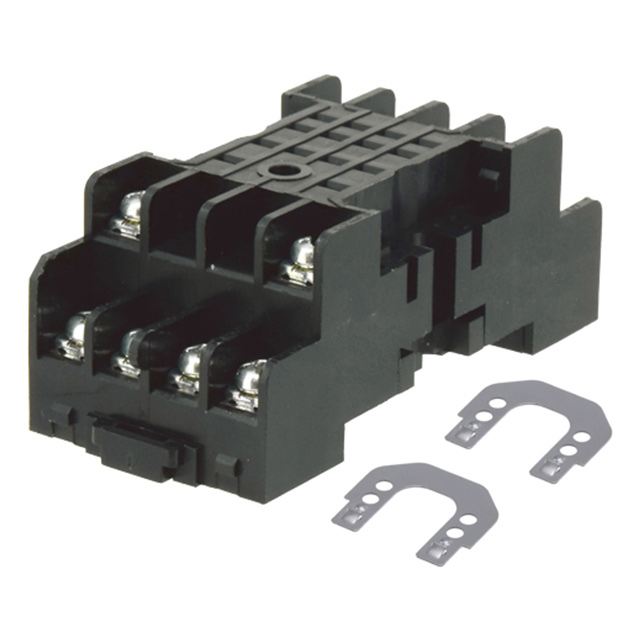

SY4S-05

Active

IDEC

RELAY SOCKET, DIN RAIL, PANEL, SCREW, 14 PINS, 7 A, 300 V, GT5Y SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

SY4S-05

Active

IDEC

RELAY SOCKET, DIN RAIL, PANEL, SCREW, 14 PINS, 7 A, 300 V, GT5Y SERIES

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SY4S-05

For Use With/Related Products	RY Series
Mounting Type	DIN Rail
Number of Positions	14
Termination Style	Screw Terminal
Type	Socket

SY4S Series

Part	Mounting Type	Termination Style	Number of Positions	For Use With/Related Products	Type	Accessory Type	Features
IDEC SY4S-05	DIN Rail	Screw Terminal	14	RY Series	Socket
IDEC SY4S-51F1				RY Series Sockets		Clip Hold Down
IDEC SY4S-62	Through Hole	PC Pin	14	RY Series	Socket
IDEC SY4S-05C	DIN Rail	Screw Terminal	14	RY Series	Socket		Finger-Safe (IP20) Terminals

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.90
		10	$ 6.90
		25	$ 6.54
		50	$ 6.28
		100	$ 6.14
Newark	Each	1	$ 8.47
		5	$ 8.34
		10	$ 8.21
		25	$ 8.04
		50	$ 7.87
		100	$ 7.71
Sager	N/A	1	$ 7.59
		48	$ 7.07
		97	$ 6.70
		194	$ 6.62

Description

General part information

SY4S Series

The SY4S-05 is a 14-pin Relay Socket with screw terminals. Suitable for use with RY4S, RY42S, RU4S, RU42S, RM2S, RY2KS (latching relay) relays, GT5Y timer. This high density socket relay comes with SY4S-51F1 for all relays, SY4S-51F3 for RY2KS only hold-down spring and SFA-101 (top notch), SFA-202 (side notch) for all relays and timers hold-down clip. This relay Socket is ideal for snap-mount/surface mounting.

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
