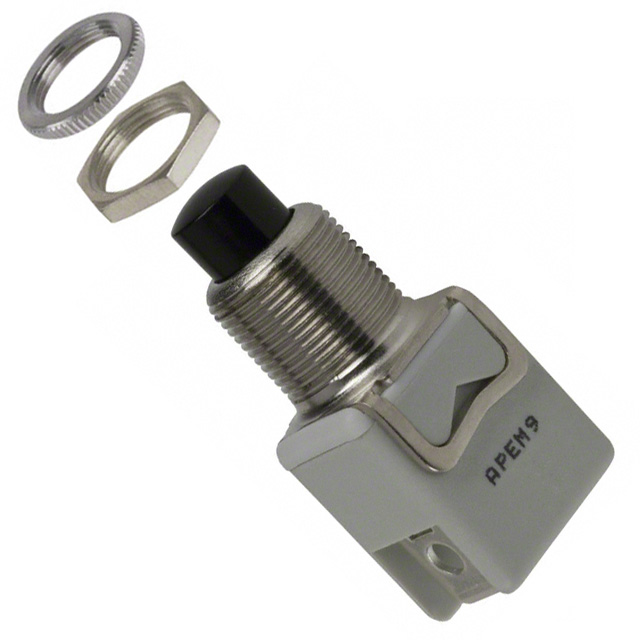

1212A2

Active

APEM

PUSHBUTTON SWITCH, 1200 SERIES, 12.2 MM, SPST-NC, MOMENTARY, ROUND PLUNGER, BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

1212A2

Active

APEM

PUSHBUTTON SWITCH, 1200 SERIES, 12.2 MM, SPST-NC, MOMENTARY, ROUND PLUNGER, BLACK

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1212A2

Actuator Marking	No Marking
Actuator Type	Round, Plunger
Circuit	SPST-NC
Color - Actuator/Cap	Black
Current Rating (Amps)	4 A, 8 A
Electrical Life	10000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	On-Mom
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	24 V

1212 Series

Part	Panel Cutout Dimensions [diameter]	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Actuator Marking	Color - Actuator/Cap	Electrical Life	Type	Actuator Type	Mounting Type	Circuit	Voltage Rating - AC	Voltage Rating - DC
APEM 1212A2	12.2 mm	On-Mom	55 °C	-20 C	4 A 8 A	No Marking	Black	10000 Cycles	Standard	Round Plunger	Panel Mount Rear	SPST-NC	125 V	24 V
APEM 1212C2	12.2 mm	On-Mom	55 °C	-20 C	2 A 3 A	No Marking	Black	10000 Cycles	Standard	Round Plunger	Panel Mount Rear	SPST-NC	125 V	24 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.61
		10	$ 10.02
		40	$ 9.17
		80	$ 8.77
		120	$ 8.54
		280	$ 8.09
		520	$ 7.77
		1000	$ 7.45
Newark	Each	1	$ 8.41
		10	$ 7.40
		25	$ 6.73
		50	$ 6.52
		100	$ 6.31

Description

General part information

1212 Series

The 1212A2 is a single-pole single-throw (SPST) Pushbutton Switch with a polyamide round plunger and NC On-On momentary silver contacts. This 1200 series switch features quick-connect terminals, polyamide case and nickel plated brass bushing.
