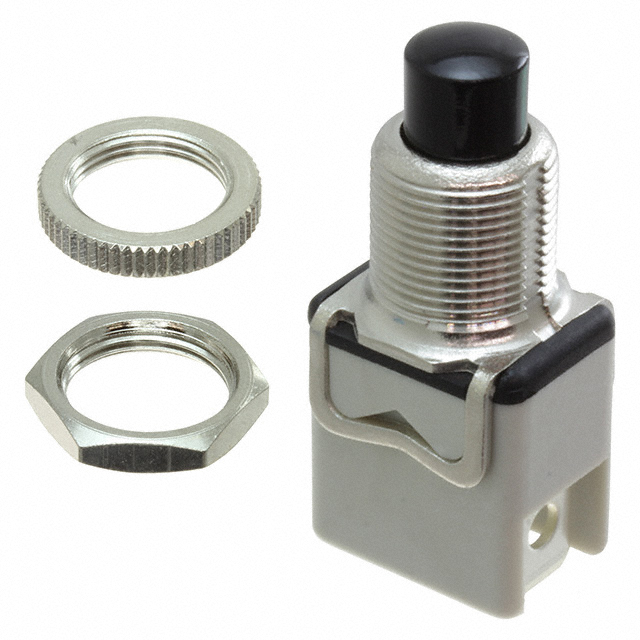

1212C2
ActiveAPEM
SWITCH PUSH SPST-NC 3A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1212C2
ActiveAPEM
SWITCH PUSH SPST-NC 3A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1212C2 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Plunger |
| Circuit | SPST-NC |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 2 A, 3 A |
| Electrical Life | 10000 Cycles |
| Mounting Type | Panel Mount, Rear |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [diameter] | 12.2 mm |
| Switch Function | On-Mom |
| Type | Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.83 | |
| 10 | $ 6.76 | |||
| 40 | $ 6.18 | |||
| 80 | $ 5.91 | |||
| 120 | $ 5.76 | |||
| 280 | $ 5.45 | |||
| 520 | $ 5.24 | |||
| 1000 | $ 5.02 | |||
Description
General part information
1212 Series
Pushbutton Switch SPST-NC Standard Panel Mount, Rear
Documents
Technical documentation and resources
