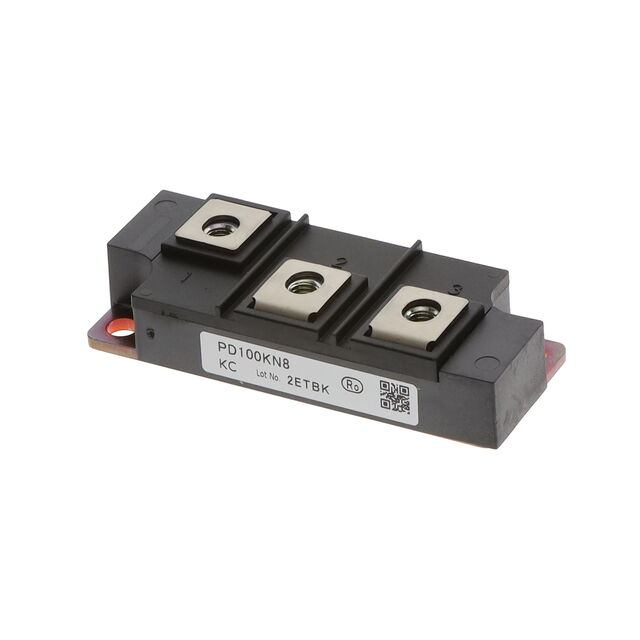

PD100KN8

Active

Kyocera AVX

DIODE MODULE, 800V, 100A, PANEL ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Kyocera AVX

DIODE MODULE, 800V, 100A, PANEL ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	PD100KN8

Current - Average Rectified (Io) (per Diode)	100 A
Current - Reverse Leakage @ Vr	7 mA
Diode Configuration	1 Pair Series Connection
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	Module
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	Module
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	800 V
Voltage - Forward (Vf) (Max) @ If	1.41 V

Part	Current - Average Rectified (Io) (per Diode)	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Diode Configuration	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Mounting Type	Speed	Speed	Technology
Kyocera AVX PD100KN8	100 A	1.41 V	800 V	Module	1 Pair Series Connection	7 mA	150 °C	-40 °C	Module	Chassis Mount	Standard Recovery >500ns	200 mA	Standard
Kyocera AVX PD100KN16	100 A	1.54 V		Module	1 Pair Series Connection	10 mA	150 °C	-40 °C	Module	Chassis Mount	Standard Recovery >500ns	200 mA	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 76.79
		32	$ 72.50
Newark	Each	1	$ 154.77

General part information

Diode Array 1 Pair Series Connection 800 V 100A Chassis Mount Module
