PD100KN16

Active

Kyocera AVX

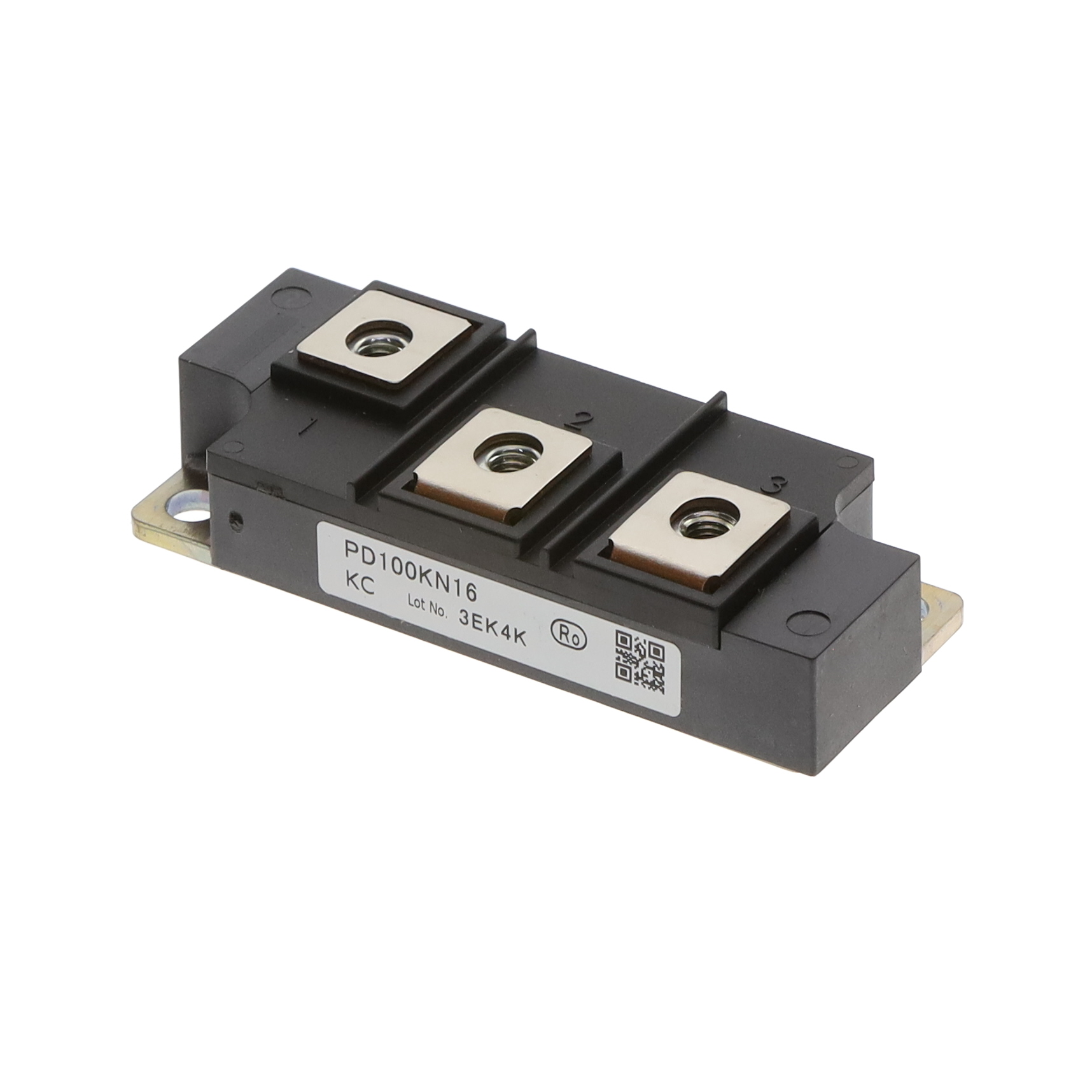

DIODE MODULE GP 1.6KV 100A

Search across all available documentation for this part.

Active

Kyocera AVX

DIODE MODULE GP 1.6KV 100A

Technical Specifications

Parameters and characteristics for this part

Specification	PD100KN16

Current - Average Rectified (Io) (per Diode)	100 A
Current - Reverse Leakage @ Vr	10 mA
Diode Configuration	1 Pair Series Connection
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	Module
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	Module
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.54 V

Part	Current - Average Rectified (Io) (per Diode)	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Diode Configuration	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Mounting Type	Speed	Speed	Technology
Kyocera AVX PD100KN8	100 A	1.41 V	800 V	Module	1 Pair Series Connection	7 mA	150 °C	-40 °C	Module	Chassis Mount	Standard Recovery >500ns	200 mA	Standard
Kyocera AVX PD100KN16	100 A	1.54 V		Module	1 Pair Series Connection	10 mA	150 °C	-40 °C	Module	Chassis Mount	Standard Recovery >500ns	200 mA	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 1 Pair Series Connection 1600 V 100A Chassis Mount Module
