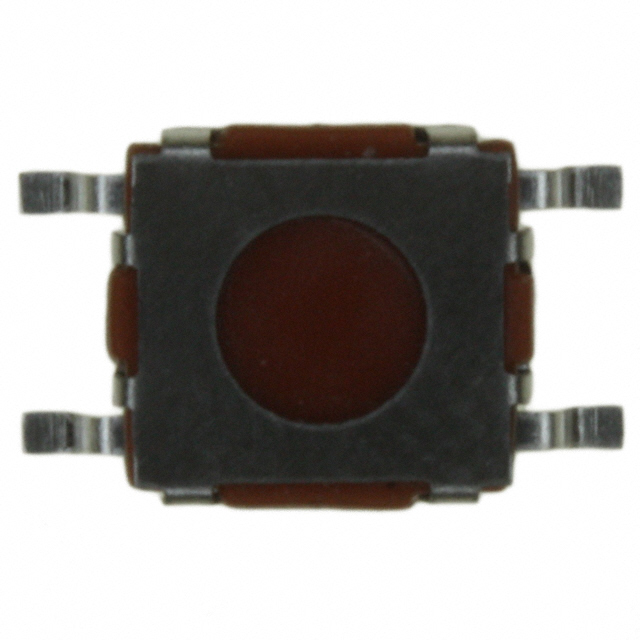

TL6700NF260QG

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	TL6700NF260QG

Actuator Height off PCB, Vertical [z]	2.6 mm
Actuator Material	Silicone Rubber
Actuator Orientation	Top Actuated
Actuator Type	Flush
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Features	Process Sealed
Illumination	Non-Illuminated
Mechanical Life	100000 Cycles
Mounting Type	Surface Mount
Operating Force	260 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	6.9 mm
Outline [y]	6.2 mm
Switch Function	Off-Mom
Switch Travel	0.35 mm
Termination Style	Gull Wing

Part	Actuator Height off PCB, Vertical	Mounting Type	Switch Travel	Features	Termination Style	Operating Force	Contact Rating @ Voltage	Actuator Type	Circuit	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Illumination	Outline [y]	Outline [x]	Mechanical Life	Actuator Material	Actuator Orientation	Actuator Height off PCB, Vertical [z]
E-Switch TL6700AF260QG	3.4 mm	Surface Mount	0.35 mm	Process Sealed	Gull Wing	260 gf	0.05 A 12 VDC	Standard	SPST-NO	Off-Mom	-20 C	70 °C	Non-Illuminated	6.2 mm	6.9 mm	100000 Cycles	Silicone Rubber	Top Actuated
E-Switch TL6700NF260QG		Surface Mount	0.35 mm	Process Sealed	Gull Wing	260 gf	0.05 A 12 VDC	Flush	SPST-NO	Off-Mom	-20 C	70 °C	Non-Illuminated	6.2 mm	6.9 mm	100000 Cycles	Silicone Rubber	Top Actuated	2.6 mm
E-Switch TL6700NF260QJ		Surface Mount	0.35 mm	Process Sealed	J Lead	260 gf	0.05 A 12 VDC	Flush	SPST-NO	Off-Mom	-20 C	70 °C	Non-Illuminated	6.2 mm	6.9 mm	100000 Cycles	Silicone Rubber	Top Actuated	2.6 mm
E-Switch TL6700AF260QJ	3.4 mm	Surface Mount	0.35 mm	Process Sealed	J Lead	260 gf	0.05 A 12 VDC	Standard	SPST-NO	Off-Mom	-20 C	70 °C	Non-Illuminated	6.2 mm	6.9 mm	100000 Cycles	Silicone Rubber	Top Actuated
E-Switch TL6700AF160QJ	3.4 mm	Surface Mount	0.35 mm	Process Sealed	J Lead		0.05 A 12 VDC	Standard	SPST-NO	Off-Mom	-20 C	70 °C	Non-Illuminated	6.2 mm	6.9 mm	500000 Cycles	Silicone Rubber	Top Actuated
