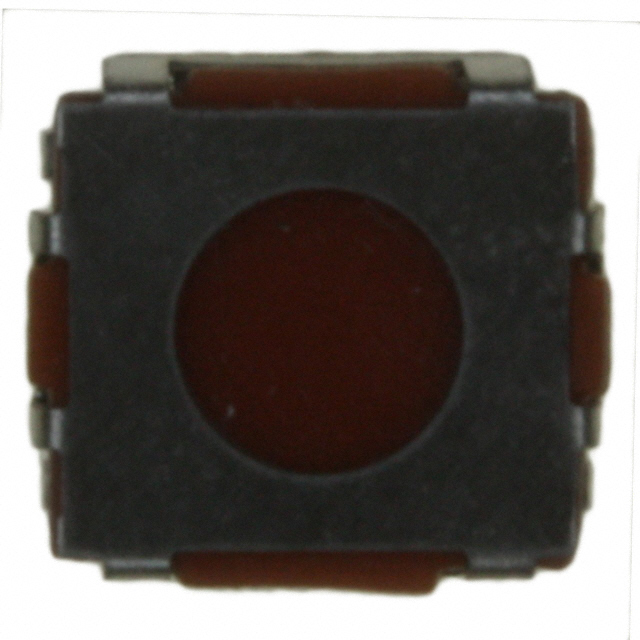

TL6700NF260QJ

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	TL6700NF260QJ

Actuator Height off PCB, Vertical [z]	2.6 mm
Actuator Material	Silicone Rubber
Actuator Orientation	Top Actuated
Actuator Type	Flush
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Features	Process Sealed
Illumination	Non-Illuminated
Mechanical Life	100000 Cycles
Mounting Type	Surface Mount
Operating Force	260 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	6.9 mm
Outline [y]	6.2 mm
Switch Function	Off-Mom
Switch Travel	0.35 mm
Termination Style	J Lead

Part	Actuator Height off PCB, Vertical	Mounting Type	Switch Travel	Features	Termination Style	Operating Force	Contact Rating @ Voltage	Actuator Type	Circuit	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Illumination	Outline [y]	Outline [x]	Mechanical Life	Actuator Material	Actuator Orientation	Actuator Height off PCB, Vertical [z]
E-Switch TL6700AF260QG	3.4 mm	Surface Mount	0.35 mm	Process Sealed	Gull Wing	260 gf	0.05 A 12 VDC	Standard	SPST-NO	Off-Mom	-20 C	70 °C	Non-Illuminated	6.2 mm	6.9 mm	100000 Cycles	Silicone Rubber	Top Actuated
E-Switch TL6700NF260QG		Surface Mount	0.35 mm	Process Sealed	Gull Wing	260 gf	0.05 A 12 VDC	Flush	SPST-NO	Off-Mom	-20 C	70 °C	Non-Illuminated	6.2 mm	6.9 mm	100000 Cycles	Silicone Rubber	Top Actuated	2.6 mm
E-Switch TL6700NF260QJ		Surface Mount	0.35 mm	Process Sealed	J Lead	260 gf	0.05 A 12 VDC	Flush	SPST-NO	Off-Mom	-20 C	70 °C	Non-Illuminated	6.2 mm	6.9 mm	100000 Cycles	Silicone Rubber	Top Actuated	2.6 mm
E-Switch TL6700AF260QJ	3.4 mm	Surface Mount	0.35 mm	Process Sealed	J Lead	260 gf	0.05 A 12 VDC	Standard	SPST-NO	Off-Mom	-20 C	70 °C	Non-Illuminated	6.2 mm	6.9 mm	100000 Cycles	Silicone Rubber	Top Actuated
E-Switch TL6700AF160QJ	3.4 mm	Surface Mount	0.35 mm	Process Sealed	J Lead		0.05 A 12 VDC	Standard	SPST-NO	Off-Mom	-20 C	70 °C	Non-Illuminated	6.2 mm	6.9 mm	500000 Cycles	Silicone Rubber	Top Actuated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1900	$ 0.57

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
