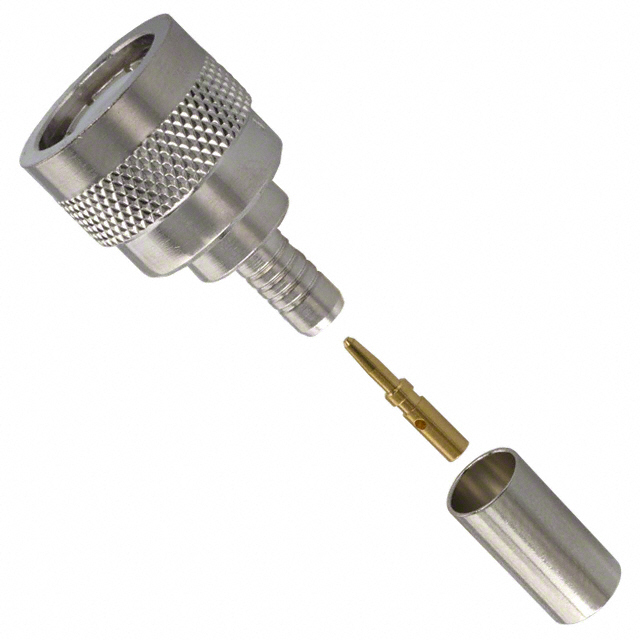

000-36825

Active

Amphenol RF

CONN TNC PLUG STR 50 OHM CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

000-36825

Active

Amphenol RF

CONN TNC PLUG STR 50 OHM CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	000-36825

Body Finish	Nickel
Body Material	Brass
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

000-36 Series

Part	Body Finish	Frequency - Max [Max]	Housing Color	Number of Ports	Connector Style	Center Contact Material	Voltage Rating	Shield Termination	Mounting Type	Cable Group	Body Material	Insertion Loss	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Connector Type	Center Contact Plating	Dielectric Material	Contact Termination	Impedance	Includes	Cable Group	Mounting Feature
Amphenol RF 000-36800-RFX	Nickel	4 GHz	Silver	1	BNC	Phosphor Bronze	500 V	Crimp	Free Hanging (In-Line)	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Brass	0.2 dB	Bayonet Lock	-65 ░C	165 °C	500	Female Socket Jack	Gold	Polytetrafluoroethylene (PTFE)	Crimp	50 Ohms
Amphenol RF 000-36875	Nickel	1 GHz	Silver	1	BNC	Brass	500 V	Crimp	Free Hanging (In-Line)	RG-55	Brass	0.2 dB	Bayonet Lock	-65 ░C	165 °C	500	Male Pin Plug	Gold	Polytetrafluoroethylene (PTFE)	Crimp Solder	50 Ohms	1 Connector 1 Contact 1 Ferrule	142 223 400
Amphenol RF 000-36825	Nickel	11 GHz	Silver	1	TNC	Brass	500 V	Crimp	Free Hanging (In-Line)	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Brass			-65 ░C	165 °C	500	Male Pin Plug	Gold	Polytetrafluoroethylene (PTFE)	Crimp	50 Ohms	1 Connector 1 Contact 1 Ferrule
Amphenol RF 000-36250	Nickel		Silver	1	N Type	Beryllium Copper		Clamp		141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Brass					500	Female Socket Jack	Silver	Polytetrafluoroethylene (PTFE)	Solder	50 Ohms			Flange
Amphenol RF 000-36800	Nickel	4 GHz	Silver	1	BNC	Phosphor Bronze	500 V	Crimp	Free Hanging (In-Line)	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Brass	0.2 dB	Bayonet Lock	-65 ░C	165 °C	500	Female Socket Jack	Gold	Polytetrafluoroethylene (PTFE)	Crimp	50 Ohms	1 Connector 1 Contact 1 Ferrule

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.88
		10	$ 9.12
		25	$ 8.24
		50	$ 7.64
		100	$ 7.10
		250	$ 6.46
		500	$ 6.03
		1000	$ 5.64

Description

General part information

000-36 Series

TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
