000-36875

Amphenol RF

CONN BNC PLUG STR 50 OHM CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

000-36875

Amphenol RF

CONN BNC PLUG STR 50 OHM CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	000-36875

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-55
Cable Group	223, 142, 400
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	1 GHz
Housing Color	Silver
Impedance	50 Ohms

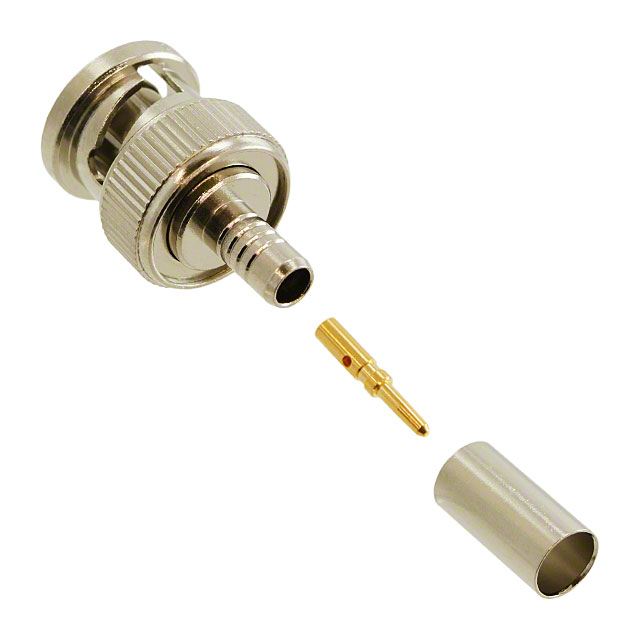

Includes	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

000-36 Series

Part	Body Finish	Frequency - Max [Max]	Housing Color	Number of Ports	Connector Style	Center Contact Material	Voltage Rating	Shield Termination	Mounting Type	Cable Group	Body Material	Insertion Loss	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Connector Type	Center Contact Plating	Dielectric Material	Contact Termination	Impedance	Includes	Cable Group	Mounting Feature
Amphenol RF 000-36800-RFX	Nickel	4 GHz	Silver	1	BNC	Phosphor Bronze	500 V	Crimp	Free Hanging (In-Line)	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Brass	0.2 dB	Bayonet Lock	-65 ░C	165 °C	500	Female Socket Jack	Gold	Polytetrafluoroethylene (PTFE)	Crimp	50 Ohms
Amphenol RF 000-36875	Nickel	1 GHz	Silver	1	BNC	Brass	500 V	Crimp	Free Hanging (In-Line)	RG-55	Brass	0.2 dB	Bayonet Lock	-65 ░C	165 °C	500	Male Pin Plug	Gold	Polytetrafluoroethylene (PTFE)	Crimp Solder	50 Ohms	1 Connector 1 Contact 1 Ferrule	142 223 400
Amphenol RF 000-36825	Nickel	11 GHz	Silver	1	TNC	Brass	500 V	Crimp	Free Hanging (In-Line)	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Brass			-65 ░C	165 °C	500	Male Pin Plug	Gold	Polytetrafluoroethylene (PTFE)	Crimp	50 Ohms	1 Connector 1 Contact 1 Ferrule
Amphenol RF 000-36250	Nickel		Silver	1	N Type	Beryllium Copper		Clamp		141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Brass					500	Female Socket Jack	Silver	Polytetrafluoroethylene (PTFE)	Solder	50 Ohms			Flange
Amphenol RF 000-36800	Nickel	4 GHz	Silver	1	BNC	Phosphor Bronze	500 V	Crimp	Free Hanging (In-Line)	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Brass	0.2 dB	Bayonet Lock	-65 ░C	165 °C	500	Female Socket Jack	Gold	Polytetrafluoroethylene (PTFE)	Crimp	50 Ohms	1 Connector 1 Contact 1 Ferrule

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.35
		10	$ 11.80
		25	$ 10.67
		50	$ 9.91
		100	$ 9.21
		250	$ 8.39
		500	$ 7.84
		1000	$ 7.34

Description

General part information

000-36 Series

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp or Solder
