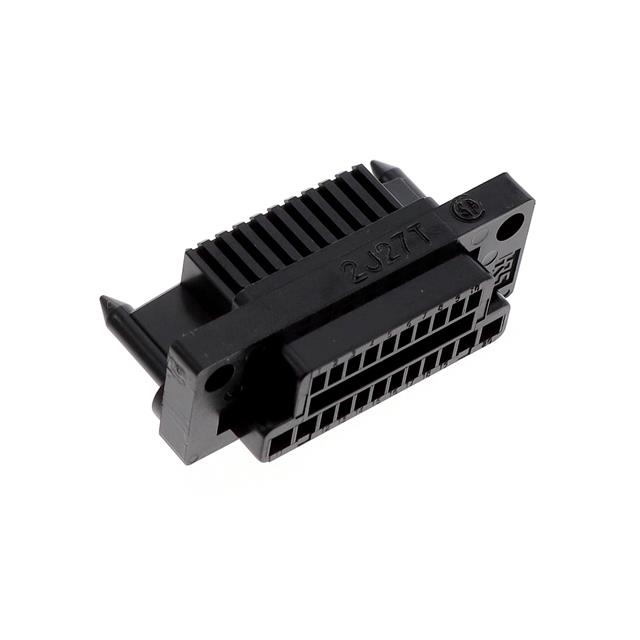

QR/P8-20P-C(21)

Active

Hirose Electric USA, Inc.

ULTRA-SMALL RECTANGULAR MULTI-CONTACT RACK/PANEL CRIMP CONNECTOR

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

ULTRA-SMALL RECTANGULAR MULTI-CONTACT RACK/PANEL CRIMP CONNECTOR

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Note	Features	Number of Positions	Pitch [x]	Pitch [x]	Connector Style	Number of Rows	Connector Usage	Color	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish	Type	Pin or Socket	Contact Termination	Current Rating (Amps)
Hirose Electric USA, Inc. QR/P8-20S-C(21)	Housing for Female Sockets	Contacts Not Included	Mating Guide	20	0.079 in	2 mm	Rack and Panel	2	Receptacle	Black
Hirose Electric USA, Inc. QR/P8-12S-C(21)	Housing for Female Sockets	Contacts Not Included	Mating Guide	12	0.079 in	2 mm	Rack and Panel	2	Receptacle	Black
Hirose Electric USA, Inc. QR/P8-8S-C(21)	Housing for Female Sockets	Contacts Not Included	Mating Guide	8	0.079 in	2 mm	Rack and Panel	2	Receptacle	Black
Hirose Electric USA, Inc. QR/P8-8S-C(22)	Housing for Female Sockets	Contacts Not Included	Mating Guide	8	0.079 in	2 mm	Rack and Panel	2	Receptacle	Black
Hirose Electric USA, Inc. QR/P8-SC-121											24 AWG	28 AWG	Gold	Signal	Socket	Crimp
Hirose Electric USA, Inc. QR/P8-20P-C(21)	Housing for Male Pins	Contacts Not Included	Guide Pin	20	0.079 in	2 mm	Rack and Panel	2	Plug	Black
Hirose Electric USA, Inc. QR/P8-8P-C(21)	Housing for Male Pins	Contacts Not Included	Guide Pin	8	0.079 in	2 mm	Rack and Panel	2	Plug	Black
Hirose Electric USA, Inc. QR/P8-SC-221(15)											24 AWG	28 AWG	Gold	Signal	Pin	Crimp	2 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Housing for Male Pins Connector Black Panel Mount Rack and Panel
