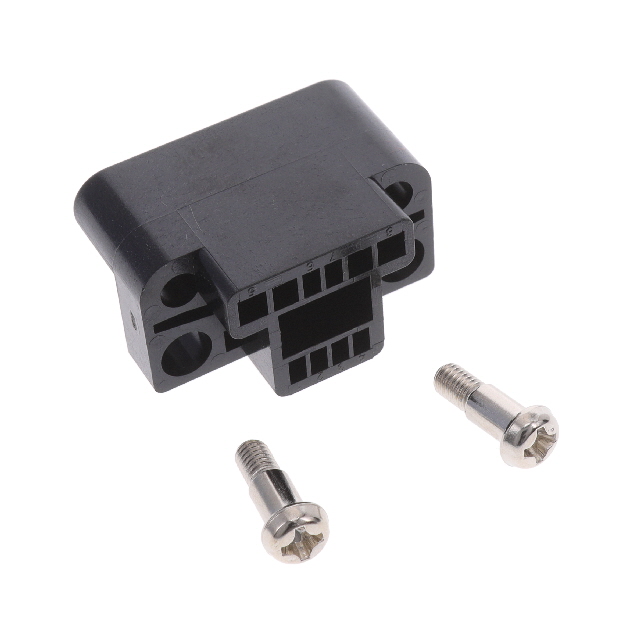

QR/P8-8S-C(21)

Active

Hirose Electric USA, Inc.

CONN RCPT HSG RACK & PNL 8P BLK

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN RCPT HSG RACK & PNL 8P BLK

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Note	Features	Number of Positions	Pitch [x]	Pitch [x]	Connector Style	Number of Rows	Connector Usage	Color	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish	Type	Pin or Socket	Contact Termination	Current Rating (Amps)
Hirose Electric USA, Inc. QR/P8-20S-C(21)	Housing for Female Sockets	Contacts Not Included	Mating Guide	20	0.079 in	2 mm	Rack and Panel	2	Receptacle	Black
Hirose Electric USA, Inc. QR/P8-12S-C(21)	Housing for Female Sockets	Contacts Not Included	Mating Guide	12	0.079 in	2 mm	Rack and Panel	2	Receptacle	Black
Hirose Electric USA, Inc. QR/P8-8S-C(21)	Housing for Female Sockets	Contacts Not Included	Mating Guide	8	0.079 in	2 mm	Rack and Panel	2	Receptacle	Black
Hirose Electric USA, Inc. QR/P8-8S-C(22)	Housing for Female Sockets	Contacts Not Included	Mating Guide	8	0.079 in	2 mm	Rack and Panel	2	Receptacle	Black
Hirose Electric USA, Inc. QR/P8-SC-121											24 AWG	28 AWG	Gold	Signal	Socket	Crimp
Hirose Electric USA, Inc. QR/P8-20P-C(21)	Housing for Male Pins	Contacts Not Included	Guide Pin	20	0.079 in	2 mm	Rack and Panel	2	Plug	Black
Hirose Electric USA, Inc. QR/P8-8P-C(21)	Housing for Male Pins	Contacts Not Included	Guide Pin	8	0.079 in	2 mm	Rack and Panel	2	Plug	Black
Hirose Electric USA, Inc. QR/P8-SC-221(15)											24 AWG	28 AWG	Gold	Signal	Pin	Crimp	2 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Housing for Female Sockets Connector Black Panel Mount Rack and Panel
