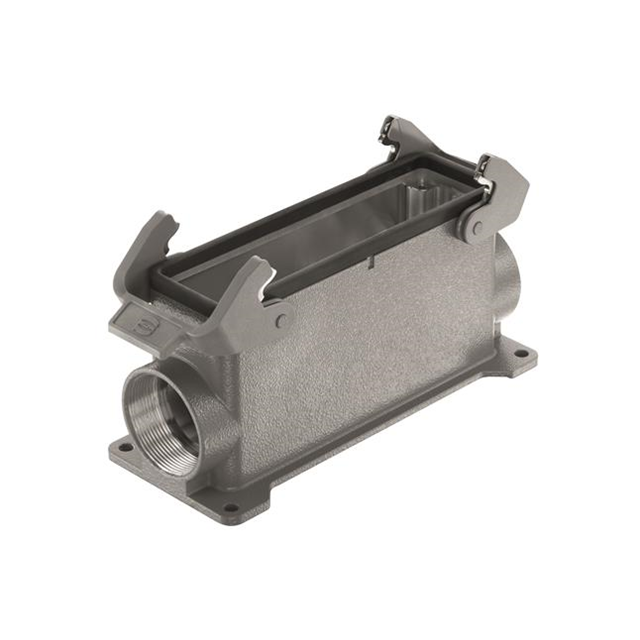

9301320272

Active

HARTING Technology Group

L32 SURFACE MOUNT HOUSING, DOUBL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

9301320272

Active

HARTING Technology Group

L32 SURFACE MOUNT HOUSING, DOUBL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9301320272

Connector Type	Base - Box Mount
Features	Feed Through
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	L32B
Size / Dimension [x]	6.732 in
Size / Dimension [x]	171 mm
Size / Dimension [y]	71.4 mm
Size / Dimension [y]	2.811 in
Size / Dimension [z]	3.181 "
Size / Dimension [z]	80.8 mm
Style	Side Entry, Dual
Thread Size	PG29

09301320 Series

Part	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Style	Housing Material	Size	Lock Location	Thread Size	Connector Type	Housing Color	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Features
HARTING Technology Group 09301320541	Powder Coated	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Side Entry	Aluminum Die Cast	L32B	Locking Clip (1) on Base Bottom	PG29	Hood	Gray	147.8 mm	43 mm	5.819 in	76 mm	1.693 in	2.992 in
HARTING Technology Group 9301320271	Powder Coated	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Side Entry	Aluminum Die Cast	L32B	Locking Clip (2) on Base Bottom	PG29	Base - Box Mount	Gray	171 mm		6.732 in		2.811 in	3.181 "	80.8 mm	71.4 mm
HARTING Technology Group 09301320521	Powder Coated	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Side Entry	Aluminum Die Cast	L32B	Locking Clip (2) on Base Bottom	PG29	Hood	Gray	147.8 mm	43 mm	5.819 in	76 mm	1.693 in	2.992 in
HARTING Technology Group 09301320421	Powder Coated	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Top Entry	Aluminum Die Cast	L32B	Locking Clip (2) on Base Bottom	PG29	Hood	Gray	147.8 mm		5.819 in		1.693 in	2.972 in	75.5 mm	43 mm
HARTING Technology Group 09301320441	Powder Coated	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Top Entry	Aluminum Die Cast	L32B	Locking Clip (1) on Base Bottom	PG29	Hood	Gray	147.8 mm		5.819 in		1.693 in	2.972 in	75.5 mm	43 mm
HARTING Technology Group 09301320301	Powder Coated	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Bottom Entry	Aluminum Die Cast	L32B	Locking Clip (2) on Base Bottom		Base - Panel Mount	Gray	170 mm		6.693 "		1.98 in	1.087 in	27.6 mm	50.3 mm
HARTING Technology Group 9301320272	Powder Coated	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Side Entry Dual	Aluminum Die Cast	L32B	Locking Clip (2) on Base Bottom	PG29	Base - Box Mount	Gray	171 mm		6.732 in		2.811 in	3.181 "	80.8 mm	71.4 mm	Feed Through

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 92.19

Description

General part information

09301320 Series

Base - Box Mount Connector Side Entry, Dual PG29 L32B IP65 - Dust Tight, Water Resistant
