09301320421

Active

HARTING Technology Group

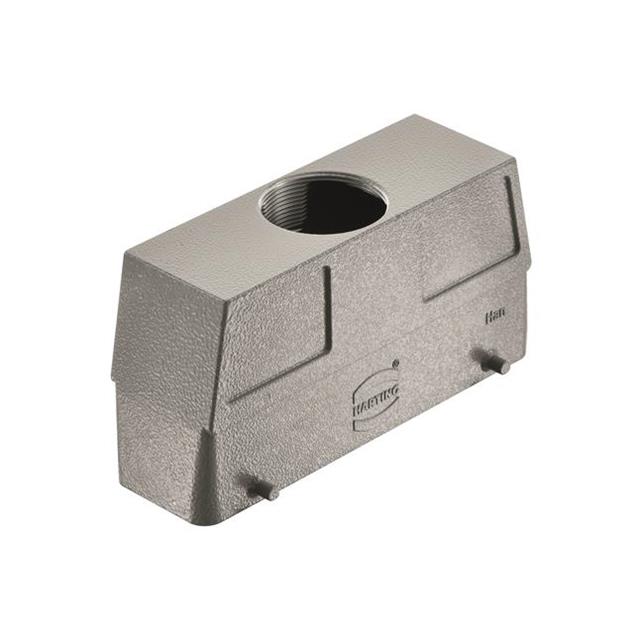

HEAVY DUTY CONNECTOR, HOOD, TOP ENTRY, ALUMINUM BODY, 2 LEVER, 32B

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Drawing EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09301320421

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	L32B
Size / Dimension [x]	5.819 in
Size / Dimension [x]	147.8 mm
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	2.972 in
Size / Dimension [z]	75.5 mm
Style	Top Entry
Thread Size	PG29

09301320 Series

Part	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Style	Housing Material	Size	Lock Location	Thread Size	Connector Type	Housing Color	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Features
HARTING Technology Group 09301320541	Powder Coated	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Side Entry	Aluminum Die Cast	L32B	Locking Clip (1) on Base Bottom	PG29	Hood	Gray	147.8 mm	43 mm	5.819 in	76 mm	1.693 in	2.992 in
HARTING Technology Group 9301320271	Powder Coated	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Side Entry	Aluminum Die Cast	L32B	Locking Clip (2) on Base Bottom	PG29	Base - Box Mount	Gray	171 mm		6.732 in		2.811 in	3.181 "	80.8 mm	71.4 mm
HARTING Technology Group 09301320521	Powder Coated	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Side Entry	Aluminum Die Cast	L32B	Locking Clip (2) on Base Bottom	PG29	Hood	Gray	147.8 mm	43 mm	5.819 in	76 mm	1.693 in	2.992 in
HARTING Technology Group 09301320421	Powder Coated	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Top Entry	Aluminum Die Cast	L32B	Locking Clip (2) on Base Bottom	PG29	Hood	Gray	147.8 mm		5.819 in		1.693 in	2.972 in	75.5 mm	43 mm
HARTING Technology Group 09301320441	Powder Coated	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Top Entry	Aluminum Die Cast	L32B	Locking Clip (1) on Base Bottom	PG29	Hood	Gray	147.8 mm		5.819 in		1.693 in	2.972 in	75.5 mm	43 mm
HARTING Technology Group 09301320301	Powder Coated	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Bottom Entry	Aluminum Die Cast	L32B	Locking Clip (2) on Base Bottom		Base - Panel Mount	Gray	170 mm		6.693 "		1.98 in	1.087 in	27.6 mm	50.3 mm
HARTING Technology Group 9301320272	Powder Coated	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Side Entry Dual	Aluminum Die Cast	L32B	Locking Clip (2) on Base Bottom	PG29	Base - Box Mount	Gray	171 mm		6.732 in		2.811 in	3.181 "	80.8 mm	71.4 mm	Feed Through

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 45.60
Newark	Each	1	$ 65.87
		50	$ 63.50
		100	$ 62.32
		250	$ 60.43
TME	N/A	1	$ 53.68
		3	$ 48.03
		5	$ 42.37

Description

General part information

09301320 Series

Hood Connector Top Entry PG29 L32B IP65 - Dust Tight, Water Resistant
