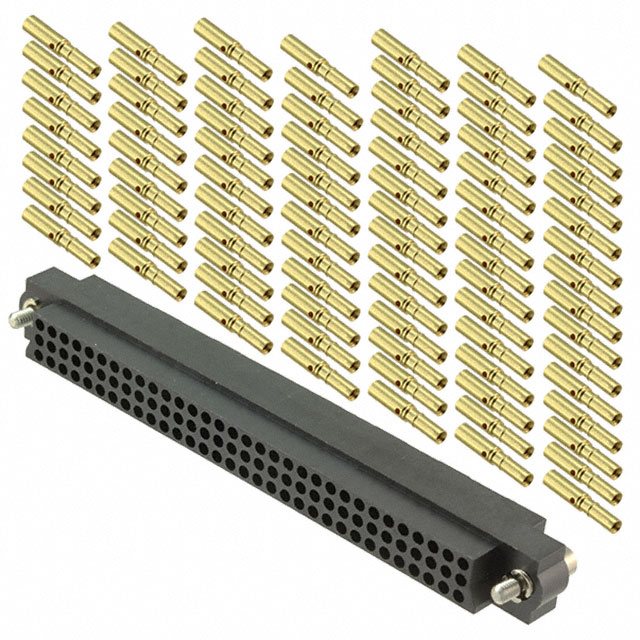

M83-LFC1F2N96-0000-000

Active

Harwin Inc.

BOARD CONNECTOR, 96 CONTACT(S), 3 ROW(S), FEMALE, 0.079 INCH PITCH, CRIMP TERMINAL, M2X0.4, BLACK INSULATOR, PLUG, ROHS COMPLIANT

Search across all available documentation for this part.

Active

Harwin Inc.

BOARD CONNECTOR, 96 CONTACT(S), 3 ROW(S), FEMALE, 0.079 INCH PITCH, CRIMP TERMINAL, M2X0.4, BLACK INSULATOR, PLUG, ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Part	Wire Gauge [Min]	Wire Gauge [Max]	Number of Positions	Contact Finish	Color	Wire Type	Row Spacing	Row Spacing	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Contact Type	Features	Connector Type	Pitch [x]	Pitch [x]	Mounting Type	Number of Rows
Harwin Inc. M83-LFC1F2N60-0000-000	24 AWG	28 AWG	60	Gold	Black	Discrete	2 mm	0.079 in	0.3 Ám	11.8 Áin	Crimp	Female Socket	Jackscrews	Receptacle	0.079 in	2 mm	Free Hanging (In-Line)	3
Harwin Inc. M83-LFC1F2N96-0000-000	24 AWG	28 AWG	96	Gold	Black	Discrete	2 mm	0.079 in	0.3 Ám	11.8 Áin	Crimp	Female Socket	Jackscrews	Receptacle	0.079 in	2 mm	Free Hanging (In-Line)	3
Harwin Inc. M83-LFC1F1N60-0000-000	24 AWG	28 AWG	60	Gold	Black	Discrete	2 mm	0.079 in	0.3 Ám	11.8 Áin	Crimp	Female Socket	Jackscrews	Receptacle	0.079 in	2 mm	Free Hanging (In-Line)	3
Harwin Inc. M83-LFC1F1N27-0000-000	24 AWG	28 AWG	27	Gold	Black	Discrete	2 mm	0.079 in	0.3 Ám	11.8 Áin	Crimp	Female Socket	Jackscrews	Receptacle	0.079 in	2 mm	Free Hanging (In-Line)	3
Harwin Inc. M83-LFC1F2N27-0000-000	24 AWG	28 AWG	27	Gold	Black	Discrete	2 mm	0.079 in	0.3 Ám	11.8 Áin	Crimp	Female Socket	Jackscrews	Receptacle	0.079 in	2 mm	Free Hanging (In-Line)	3
Harwin Inc. M83-LFC1F2N36-0000-000	24 AWG	28 AWG	36	Gold	Black	Discrete	2 mm	0.079 in	0.3 Ám	11.8 Áin	Crimp	Female Socket	Jackscrews	Receptacle	0.079 in	2 mm	Free Hanging (In-Line)	3
Harwin Inc. M83-LFC1F1N96-0000-000	24 AWG	28 AWG	96	Gold	Black	Discrete	2 mm	0.079 in	0.3 Ám	11.8 Áin	Crimp	Female Socket	Jackscrews	Receptacle	0.079 in	2 mm	Free Hanging (In-Line)	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

96 Position Rectangular Receptacle Connector Crimp Gold 24-28 AWG
