M83-LFC1F2N27-0000-000

Active

Harwin Inc.

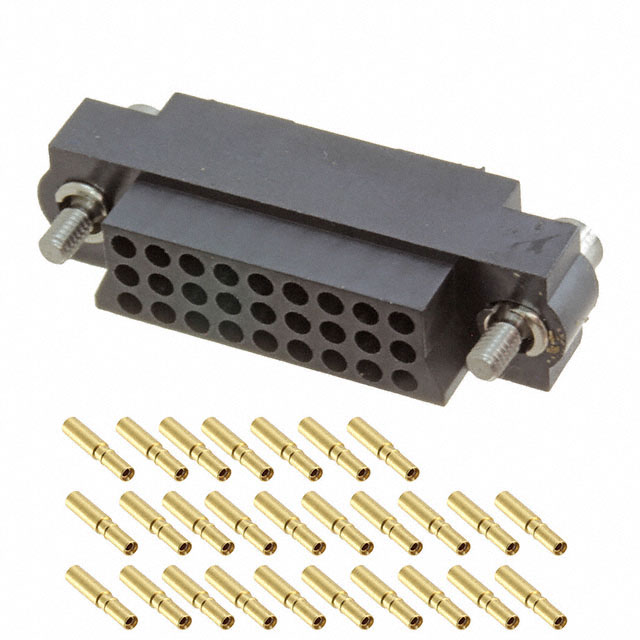

CONNECTOR, RCPT, 27POS, 3ROW, 2MM

Search across all available documentation for this part.

Active

Harwin Inc.

CONNECTOR, RCPT, 27POS, 3ROW, 2MM

Technical Specifications

Parameters and characteristics for this part

Part	Wire Gauge [Min]	Wire Gauge [Max]	Number of Positions	Contact Finish	Color	Wire Type	Row Spacing	Row Spacing	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Contact Type	Features	Connector Type	Pitch [x]	Pitch [x]	Mounting Type	Number of Rows
Harwin Inc. M83-LFC1F2N60-0000-000	24 AWG	28 AWG	60	Gold	Black	Discrete	2 mm	0.079 in	0.3 Ám	11.8 Áin	Crimp	Female Socket	Jackscrews	Receptacle	0.079 in	2 mm	Free Hanging (In-Line)	3
Harwin Inc. M83-LFC1F2N96-0000-000	24 AWG	28 AWG	96	Gold	Black	Discrete	2 mm	0.079 in	0.3 Ám	11.8 Áin	Crimp	Female Socket	Jackscrews	Receptacle	0.079 in	2 mm	Free Hanging (In-Line)	3
Harwin Inc. M83-LFC1F1N60-0000-000	24 AWG	28 AWG	60	Gold	Black	Discrete	2 mm	0.079 in	0.3 Ám	11.8 Áin	Crimp	Female Socket	Jackscrews	Receptacle	0.079 in	2 mm	Free Hanging (In-Line)	3
Harwin Inc. M83-LFC1F1N27-0000-000	24 AWG	28 AWG	27	Gold	Black	Discrete	2 mm	0.079 in	0.3 Ám	11.8 Áin	Crimp	Female Socket	Jackscrews	Receptacle	0.079 in	2 mm	Free Hanging (In-Line)	3
Harwin Inc. M83-LFC1F2N27-0000-000	24 AWG	28 AWG	27	Gold	Black	Discrete	2 mm	0.079 in	0.3 Ám	11.8 Áin	Crimp	Female Socket	Jackscrews	Receptacle	0.079 in	2 mm	Free Hanging (In-Line)	3
Harwin Inc. M83-LFC1F2N36-0000-000	24 AWG	28 AWG	36	Gold	Black	Discrete	2 mm	0.079 in	0.3 Ám	11.8 Áin	Crimp	Female Socket	Jackscrews	Receptacle	0.079 in	2 mm	Free Hanging (In-Line)	3
Harwin Inc. M83-LFC1F1N96-0000-000	24 AWG	28 AWG	96	Gold	Black	Discrete	2 mm	0.079 in	0.3 Ám	11.8 Áin	Crimp	Female Socket	Jackscrews	Receptacle	0.079 in	2 mm	Free Hanging (In-Line)	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

27 Position Rectangular Receptacle Connector Crimp Gold 24-28 AWG
