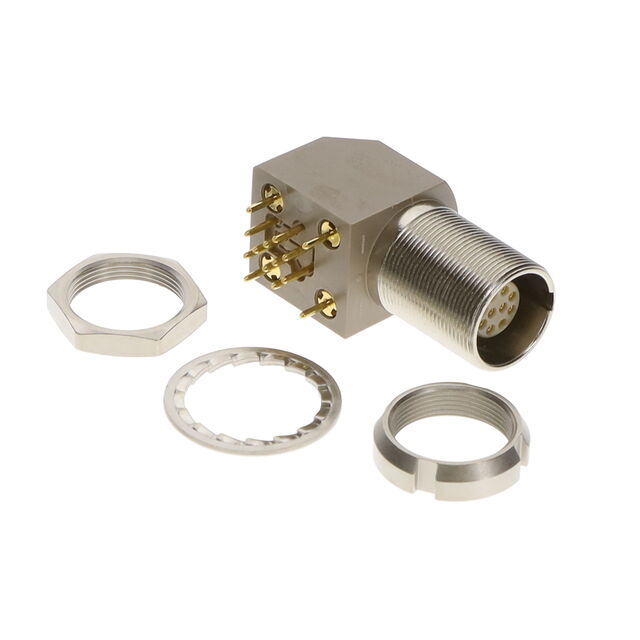

EXG.1B.310.HLN

Active

LEMO

CONN RCPT FMALE 10POS GOLD SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EXG.1B.310.HLN

Active

LEMO

CONN RCPT FMALE 10POS GOLD SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EXG.1B.310.HLN

Color	Brown, Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	1.5 A
Fastening Type	Push-Pull
Features	Ground
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	10
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass and Polyphenylene Sulfide (PPS)
Shell Size - Insert	310
Shielding	Shielded
Termination	Solder

EXG.1B Series

Part	Material Flammability Rating	Shielding	Ingress Protection	Features	Termination	Mounting Type	Shell Finish	Contact Material	Primary Material	Color	Contact Finish - Mating	Current Rating (Amps)	Fastening Type	Shell Material	Number of Positions	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Insert Material	Orientation	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type
LEMO EXG.1B.307.HLN	UL94 V-0	Shielded	IP50	Ground	Solder	Panel Mount Right Angle Through Hole	Nickel	Bronze	Metal	Brown Silver	Gold	2 A	Push-Pull	Brass and Polyphenylene Sulfide (PPS)	7	Bulkhead - Front Side Nut	-55 °C	250 °C	307	Polyetheretherketone (PEEK)	G	59 Áin	1.5 Ám	Receptacle Female Sockets
LEMO EXG.1B.303.HLN	UL94 V-0	Shielded	IP50	Ground	Solder	Panel Mount Right Angle Through Hole	Nickel	Bronze	Metal	Brown Silver	Gold	4.5 A	Push-Pull	Brass and Polyphenylene Sulfide (PPS)		Bulkhead - Front Side Nut	-55 °C	250 °C	303	Polyetheretherketone (PEEK)	G	59 Áin	1.5 Ám	Receptacle Female Sockets
LEMO EXG.1B.308.HLNS	UL94 V-0	Shielded	IP50		Solder	Panel Mount Right Angle Through Hole	Nickel	Bronze	Metal	Brown Silver	Gold	2 A	Push-Pull	Brass and Polyphenylene Sulfide (PPS)	8	Bulkhead - Front Side Nut	-55 °C	250 °C	308	Polyetheretherketone (PEEK)	G	59 Áin	1.5 Ám	Receptacle Female Sockets
LEMO EXG.1B.305.HLN	UL94 V-0	Shielded	IP50	Ground	Solder	Panel Mount Right Angle Through Hole	Nickel	Bronze	Metal	Brown Silver	Gold	4.5 A	Push-Pull	Brass and Polyphenylene Sulfide (PPS)		Bulkhead - Front Side Nut	-55 °C	250 °C	305	Polyetheretherketone (PEEK)	G	59 Áin	1.5 Ám	Receptacle Female Sockets
LEMO EXG.1B.302.HLN	UL94 V-0	Shielded	IP50	Ground	Solder	Panel Mount Right Angle Through Hole	Nickel	Bronze	Metal	Brown Silver	Gold	4.5 A	Push-Pull	Brass and Polyphenylene Sulfide (PPS)	2	Bulkhead - Front Side Nut	-55 °C	250 °C	302	Polyetheretherketone (PEEK)	G	59 Áin	1.5 Ám	Receptacle Female Sockets
LEMO EXG.1B.310.HLN	UL94 V-0	Shielded	IP50	Ground	Solder	Panel Mount Right Angle Through Hole	Nickel	Bronze	Metal	Brown Silver	Gold	1.5 A	Push-Pull	Brass and Polyphenylene Sulfide (PPS)	10	Bulkhead - Front Side Nut	-55 °C	250 °C	310	Polyetheretherketone (PEEK)	G	59 Áin	1.5 Ám	Receptacle Female Sockets
LEMO EXG.1B.308.LLNY	UL94 V-0	Shielded	IP50	Ground	Solder	Panel Mount Right Angle Through Hole	Nickel	Bronze	Metal	Brown Silver	Gold	2 A	Push-Pull	Brass and Polyphenylene Sulfide (PPS)	8	Bulkhead - Front Side Nut	-55 °C	250 °C	308	Polyetheretherketone (PEEK)	G	59 Áin	1.5 Ám	Receptacle Female Sockets
LEMO EXG.1B.304.HLN	UL94 V-0	Shielded	IP50	Ground	Solder	Panel Mount Right Angle Through Hole	Nickel	Bronze	Metal	Brown Silver	Gold	4.5 A	Push-Pull	Brass and Polyphenylene Sulfide (PPS)	4	Bulkhead - Front Side Nut	-55 °C	250 °C	304	Polyetheretherketone (PEEK)	G	59 Áin	1.5 Ám	Receptacle Female Sockets

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 107.12
		10	$ 98.30
		25	$ 94.52
		50	$ 91.37
		100	$ 86.33

Description

General part information

EXG.1B Series

10 Position Circular Connector Receptacle, Female Sockets Solder

Documents

Technical documentation and resources
