EXG.1B.307.HLN

Active

LEMO

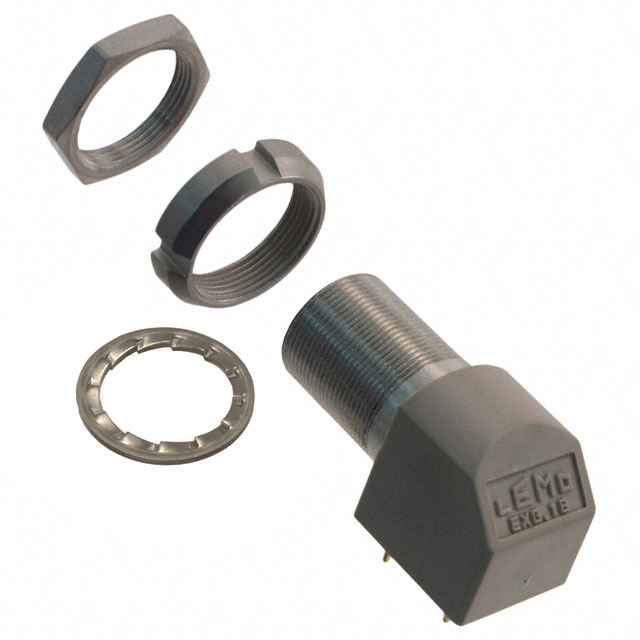

CONN RCPT FMALE 7POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsUnipole, Multipole Catalog Datasheet

EXG.1B.307.HLN

Active

LEMO

CONN RCPT FMALE 7POS GOLD SOLDER

Deep-Dive with AI

DocumentsUnipole, Multipole Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EXG.1B.307.HLN

Color	Brown, Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Features	Ground
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	7
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass and Polyphenylene Sulfide (PPS)
Shell Size - Insert	307
Shielding	Shielded
Termination	Solder

EXG.1B Series

Part	Material Flammability Rating	Shielding	Ingress Protection	Features	Termination	Mounting Type	Shell Finish	Contact Material	Primary Material	Color	Contact Finish - Mating	Current Rating (Amps)	Fastening Type	Shell Material	Number of Positions	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Insert Material	Orientation	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type
LEMO EXG.1B.307.HLN	UL94 V-0	Shielded	IP50	Ground	Solder	Panel Mount Right Angle Through Hole	Nickel	Bronze	Metal	Brown Silver	Gold	2 A	Push-Pull	Brass and Polyphenylene Sulfide (PPS)	7	Bulkhead - Front Side Nut	-55 °C	250 °C	307	Polyetheretherketone (PEEK)	G	59 Áin	1.5 Ám	Receptacle Female Sockets
LEMO EXG.1B.303.HLN	UL94 V-0	Shielded	IP50	Ground	Solder	Panel Mount Right Angle Through Hole	Nickel	Bronze	Metal	Brown Silver	Gold	4.5 A	Push-Pull	Brass and Polyphenylene Sulfide (PPS)		Bulkhead - Front Side Nut	-55 °C	250 °C	303	Polyetheretherketone (PEEK)	G	59 Áin	1.5 Ám	Receptacle Female Sockets
LEMO EXG.1B.308.HLNS	UL94 V-0	Shielded	IP50		Solder	Panel Mount Right Angle Through Hole	Nickel	Bronze	Metal	Brown Silver	Gold	2 A	Push-Pull	Brass and Polyphenylene Sulfide (PPS)	8	Bulkhead - Front Side Nut	-55 °C	250 °C	308	Polyetheretherketone (PEEK)	G	59 Áin	1.5 Ám	Receptacle Female Sockets
LEMO EXG.1B.305.HLN	UL94 V-0	Shielded	IP50	Ground	Solder	Panel Mount Right Angle Through Hole	Nickel	Bronze	Metal	Brown Silver	Gold	4.5 A	Push-Pull	Brass and Polyphenylene Sulfide (PPS)		Bulkhead - Front Side Nut	-55 °C	250 °C	305	Polyetheretherketone (PEEK)	G	59 Áin	1.5 Ám	Receptacle Female Sockets
LEMO EXG.1B.302.HLN	UL94 V-0	Shielded	IP50	Ground	Solder	Panel Mount Right Angle Through Hole	Nickel	Bronze	Metal	Brown Silver	Gold	4.5 A	Push-Pull	Brass and Polyphenylene Sulfide (PPS)	2	Bulkhead - Front Side Nut	-55 °C	250 °C	302	Polyetheretherketone (PEEK)	G	59 Áin	1.5 Ám	Receptacle Female Sockets
LEMO EXG.1B.310.HLN	UL94 V-0	Shielded	IP50	Ground	Solder	Panel Mount Right Angle Through Hole	Nickel	Bronze	Metal	Brown Silver	Gold	1.5 A	Push-Pull	Brass and Polyphenylene Sulfide (PPS)	10	Bulkhead - Front Side Nut	-55 °C	250 °C	310	Polyetheretherketone (PEEK)	G	59 Áin	1.5 Ám	Receptacle Female Sockets
LEMO EXG.1B.308.LLNY	UL94 V-0	Shielded	IP50	Ground	Solder	Panel Mount Right Angle Through Hole	Nickel	Bronze	Metal	Brown Silver	Gold	2 A	Push-Pull	Brass and Polyphenylene Sulfide (PPS)	8	Bulkhead - Front Side Nut	-55 °C	250 °C	308	Polyetheretherketone (PEEK)	G	59 Áin	1.5 Ám	Receptacle Female Sockets
LEMO EXG.1B.304.HLN	UL94 V-0	Shielded	IP50	Ground	Solder	Panel Mount Right Angle Through Hole	Nickel	Bronze	Metal	Brown Silver	Gold	4.5 A	Push-Pull	Brass and Polyphenylene Sulfide (PPS)	4	Bulkhead - Front Side Nut	-55 °C	250 °C	304	Polyetheretherketone (PEEK)	G	59 Áin	1.5 Ám	Receptacle Female Sockets

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 79.16
		10	$ 61.56
		25	$ 56.00
		50	$ 53.76

Description

General part information

EXG.1B Series

7 Position Circular Connector Receptacle, Female Sockets Solder

Documents

Technical documentation and resources

Unipole, Multipole Catalog

Datasheet
