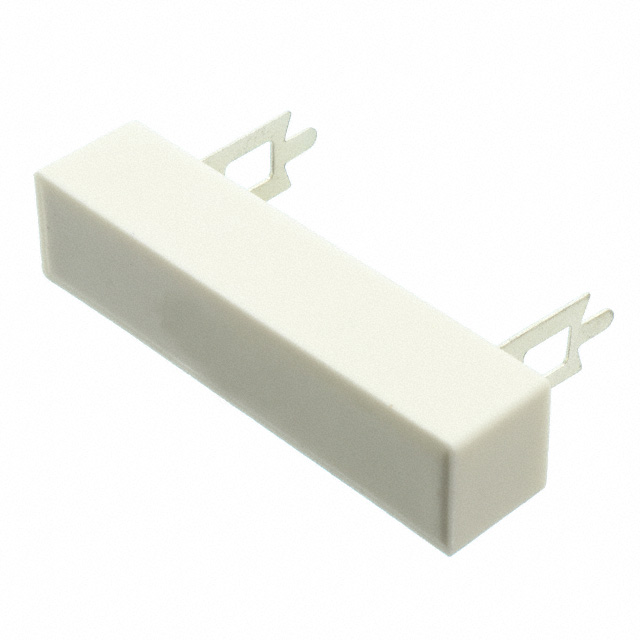

SQZW108R2J
ActiveTE Connectivity Passive Product
RES 8.2 OHM 5% 10W RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
SQZW108R2J
ActiveTE Connectivity Passive Product
RES 8.2 OHM 5% 10W RADIAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SQZW108R2J |
|---|---|
| Composition | Wirewound |
| Features | Safety, Moisture Resistant, Cement Coated, Flame Proof |
| Height - Seated (Max) [Max] [z] | 11 mm |
| Height - Seated (Max) [Max] [z] | 0.433 in |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 250 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial |
| Power (Watts) | 10 W |
| Size / Dimension [x] | 48 mm |
| Size / Dimension [x] | 1.89 in |
| Size / Dimension [y] | 10 mm |
| Size / Dimension [y] | 0.394 in |
| Supplier Device Package | Radial Lead |
| Temperature Coefficient | 300 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.49 | |
| 10 | $ 0.98 | |||
| 25 | $ 0.84 | |||
| 50 | $ 0.75 | |||
| 180 | $ 0.62 | |||
| 360 | $ 0.57 | |||
| 540 | $ 0.54 | |||
| 1080 | $ 0.50 | |||
| 5040 | $ 0.43 | |||
Description
General part information
SQZW10 Series
8.2 Ohms ±5% 10W Through Hole Resistor Radial Cement Coated, Flame Proof, Moisture Resistant, Safety Wirewound
