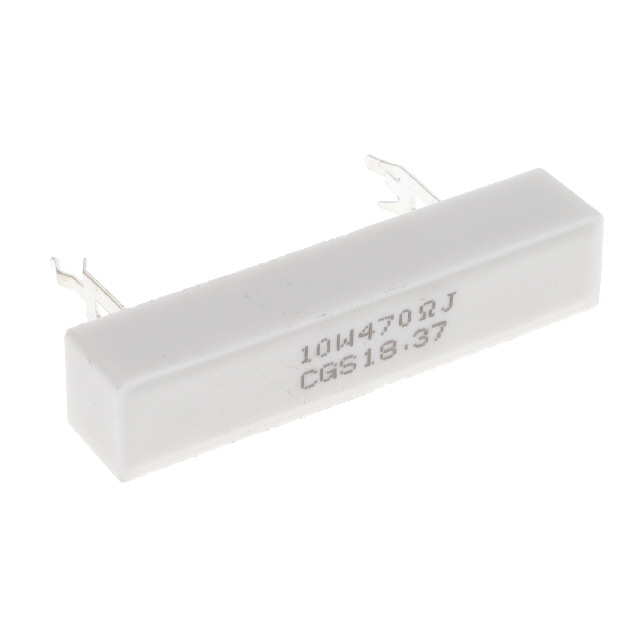

SQZW10470RJ
ActiveTE Connectivity Passive Product
RES 470 OHM 5% 10W RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SQZW10470RJ
ActiveTE Connectivity Passive Product
RES 470 OHM 5% 10W RADIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SQZW10470RJ |
|---|---|
| Composition | Wirewound |
| Features | Safety, Flame Proof, Moisture Resistant |
| Height - Seated (Max) [Max] [z] | 11 mm |
| Height - Seated (Max) [Max] [z] | 0.433 in |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 250 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial |
| Power (Watts) | 10 W |
| Resistance | 470 Ohms |
| Size / Dimension [x] | 48 mm |
| Size / Dimension [x] | 1.89 in |
| Size / Dimension [y] | 10 mm |
| Size / Dimension [y] | 0.394 in |
| Supplier Device Package | Radial Lead |
| Temperature Coefficient | 300 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.63 | |
| 10 | $ 0.53 | |||
| 25 | $ 0.51 | |||
| 50 | $ 0.47 | |||
| 180 | $ 0.38 | |||
| 360 | $ 0.34 | |||
| 540 | $ 0.32 | |||
Description
General part information
SQZW10 Series
470 Ohms ±5% 10W Through Hole Resistor Radial Flame Proof, Moisture Resistant, Safety Wirewound
